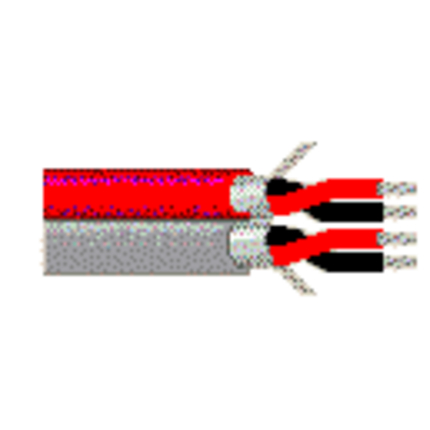

1504A - Audio Cable, #22-2pr, TC, O/A Foil, CM

1504A – Audio Cable, #22-2pr, TC, O/A Foil, CM

Call for Price

Compare
SKU: 1504A Categories: , , , ,

Description

Product Overview

Suitable Applications: for use with automatic stripping equipments; low voltage analog signals (4-20ma, 0-10v, …); low voltage digital control (24v, …); stereo audio; computer communication; panel wiring

Construction Details

Conductor
Size Stranding Material
22 19×34 TC – Tinned Copper
Insulation
Material Nom. Thickness Nom. Insulation Diameter Color Code
PVC – Polyvinyl Chloride 0.01 in (0.25 mm) 0.050 in (1.3 mm) Black & Red
Outer Shield
Shield Type Material Coverage
Tape Bi-Laminate (Alum+Poly) 100%
Outer Jacket
Material Nom. Thickness Nom. Diameter
PVC – Polyvinyl Chloride 0.020 in (0.51 mm) 0.286 in

Electrical Characteristics

Electricals
Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Nom. Capacitance Cond-to-Other (Conds + Shield) Nom. Characteristic Impedence Nom. Velocity of Prop. Max. Current
13.7 Ohm/1000ft (44.9 Ohm/km) 57 pF/ft (190 pF/m) 100 pF/ft (330 pF/m) 45 Ohm 66% 2.9 Amps per Conductor at 25ºC
Voltage
UL Voltage Rating
150 V RMS

Mechanical Characteristics

Temperature
UL Temperature Operating
60°C -30°C To +60°C
Max. Pull Tension: 25 lbs (11 kg)
Bulk Cable Weight: 30 lbs/1000ft (45 kg/km)

Standards and Compliance

Environmental Suitability: Indoor (Not Riser or Plenum), Indoor
Flammability / Reaction to Fire: UL1685 UL Loading, IEC 60332-1-2
CPR Compliance: CPR Euroclass: Eca
NEC / UL Compliance: CM
CEC / C(UL) Compliance: CM
European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
UK Regulation Compliance: UKCA Mark
APAC Compliance: China RoHS II (GB/T 26572-2011)

Product Notes

Notes: Overall Nominal Diameter: 0.143 x 0.286 in. The jacket and shield are bonded so both can be removed on automatic stripping equipment. Drain wire is inside foil shield.

History

Update and Revision: Revision Number: 0.437 Revision Date: 12-22-2023

Part Numbers

Variants
Item # Color Putup Type Length UPC Footnote
1504A J77U1000 Black and Red Pair UnReel 1,000 ft 612825116165
1504A 0531000 Red and Gray Pair Reel 1,000 ft 612825116189
1504A 053U1000 Red and Gray Pair UnReel 1,000 ft 612825116172
1504A 0532000 Red and Gray Pair Reel 2,000 ft 612825116196 C
1504A A5QU1000 Red and Green Pair UnReel 1,000 ft 612825116134
1504A A5Q2000 Red and Green Pair Reel 2,000 ft 612825116141 C
1504A G04U1000 Red and Purple Pair UnReel 1,000 ft 612825116158
