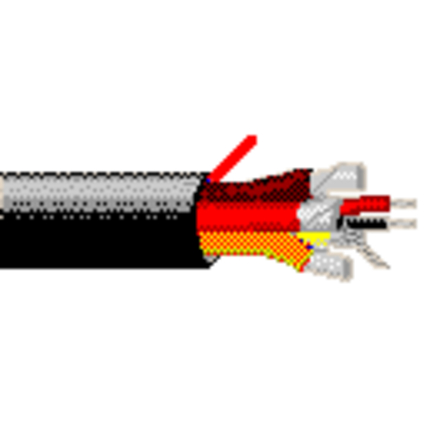

1427B - Audio Snake Cable, #24-24pr, TC, Indiv. Shielded

1427B – Audio Snake Cable, #24-24pr, TC, Indiv. Shielded

Call for Price

Compare
SKU: 1427B Categories: , , , ,

Description

Product Overview

Suitable Applications: Multi-channel interconnect between audio equipment such as microphones, speakers, amplifiers, mixing consoles; Live events or studio sound; Analog audio

Physical Characteristics (Overall)

Conductor
AWG Stranding Material Nominal Diameter No. of Pairs
22 7×30 TC – Tinned Copper 0.03 in 24
Conductor Count: 48
Total Number of Pairs: 24
Insulation
Material Material Trade Name Nominal Diameter Nominal Wall Thickness
PE – Polyethylene (Foam) Datalene® 0.06 in 0.015 in
Color Chart
Number Color
1 Brown
2 Red
3 Orange
4 Yellow
5 Green
6 Blue
7 Purple
8 Gray
9 White
10 Black
11 Tan
12 Pink
13 Gray/Brown
14 Gray/Red
15 Gray/Orange
16 Gray/Yellow
17 Gray/Green
18 Gray/Blue
19 Gray/Purple
20 Gray/Gray
21 Gray/White
22 Gray/Black
23 Gray/Tan
24 Gray/Pink
Color Chart 2
Color
Red and Black
Inner Shield
Type Material Material Trade Name Coverage [%] Drainwire Material Drainwire Diameter Drainwire AWG Drainwire Construction n x D
Tape Bi-Laminate (Alum+Poly) Beldfoil® 100% TC – Tinned Copper 0.030 in 22 7×30
Inner Jacket
Material Nominal Diameter Nominal Wall Thickness
PVC – Polyvinyl Chloride 0.153 in 0.015 in
Outer Jacket
Material Nominal Diameter Nominal Wall Thickness Ripcord
PVC – Polyvinyl Chloride 1.088 in 0.09 in Yes

Construction and Dimensions

Stranding
Twists
6.85 twist/ft

Electrical Characteristics

Conductor DCR
Individual Pair Nominal Shield DCR Nominal Conductor DCR Nominal Conductor DCR Conductor Resistance
10.6 Ohm/1000ft 15 Ohm/1000ft 15 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Conductor Nom. Capacitance Conductor to Other Conductor to Shield
19 pF/ft 35 pF/ft
Inductance
Nominal Inductance
0.2 µH/ft
Delay
Nominal Velocity of Propagation (VP) [%]
78%
Current
Max. Recommended Current [A]
1.45 Amps per Conductor at 20ºC
Voltage
Non-UL Voltage Rating
300 V RMS

Temperature Range

Non-UL Temp Rating: 60°C
Operating Temperature Range: -20°C To +60°C

Mechanical Characteristics

Bulk Cable Weight: 531 lbs/1000ft
Max. Pull Tension: 655 lbs
Min. Bend Radius/Minor Axis: 10.88 in

Applicable Environmental and Other Programs

Environmental Space: Indoor (Not Riser or Plenum)
EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/11/EC (BFR): Yes
EU Directive 2011/65/EU (RoHS 2): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive 2015/863/EU (RoHS 2 amendment): Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
MII Order #39 (China RoHS): Yes

Suitability

Suitability – Indoor: Yes

Plenum/Non-Plenum

Plenum (Y/N): No

Related Part Numbers

Variants
Item # Color Put-Up Type Length UPC
1427B B591000 Black, Matte Reel 1,000 ft 612825115175
Footnote: C – CRATE REEL PUT-UP.

Product Notes

Notes: Datalene® insulation features include a low dielectric constant and a low dissipation factor for high-speed, low distortion data handling. Physical properties include good crush resistance and light weight. Pair jackets and shields are bonded so both strip simultaneously with automatic stripping equipment.

History

Update and Revision: Revision Number: 0.345 Revision Date: 01-10-2024
