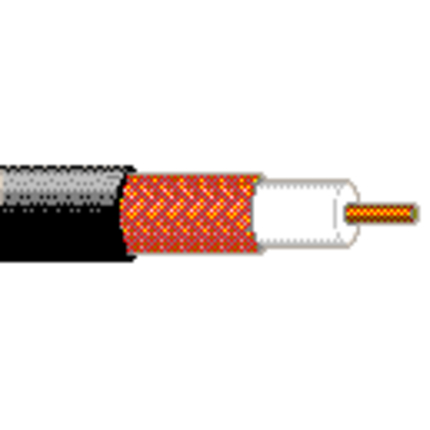

1426A - Analog Video, RG59, #20 Solid BC, 95% BC Braid, PVC Jacket, CM

1426A – Analog Video, RG59, #20 Solid BC, 95% BC Braid, PVC Jacket, CM

Call for Price

Compare
SKU: 1426A Categories: , , ,

Description

Physical Characteristics (Overall)

Conductor
AWG Stranding Material Nominal Diameter No. of Coax
20 Solid BC – Bare Copper 0.032 in 1
Conductor Count: 1
Insulation
Material Nominal Diameter
PE – Polyethylene (Foam) 0.145 in
Table Notes: Gas Injected
Outer Shield
Type Material Coverage [%]
Braid Bare Copper (BC) 95%
Outer Jacket
Material Nominal Diameter
PVC – Polyvinyl Chloride 0.242 in

Electrical Characteristics

Conductor DCR
Nominal Conductor DCR Nominal Conductor DCR Conductor Resistance Nominal Outer Shield DCR Outer Conductor DCR
10 Ohm/1000ft 10 Ohm/1000ft 2.6 Ohm/1000ft 2.6 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Shield
16.3 pF/ft
Inductance
Nominal Inductance
0.097 µH/ft
Impedance
Nominal Characteristic Impedance
75 Ohm
High Frequency (Nominal/Typical)
Frequency [MHz] Nom. Insertion Loss
1 MHz 0.3 dB/100ft
5 MHz 0.65 dB/100ft
10 MHz 0.9 dB/100ft
50 MHz 1.9 dB/100ft
100 MHz 2.6 dB/100ft
200 MHz 3.6 dB/100ft
400 MHz 5 dB/100ft
700 MHz 7 dB/100ft
900 MHz 8 dB/100ft
1000 MHz 8.5 dB/100ft
Delay
Nominal Delay Nominal Velocity of Propagation (VP) [%]
1.21 ns/ft 83%
Voltage
Non-UL Voltage Rating UL Voltage Rating
300 V RMS 30 V RMS
300 V RMS (CM)
Electrical Characteristics Notes: 30 V RMS (UL AWM Style 1354); 300 V RMS (CM)

Temperature Range

Non-UL Temp Rating: 75°C
UL Temp Rating: 60°C
Operating Temperature Range: -30°C To +75°C

Mechanical Characteristics

Bulk Cable Weight: 36 lbs/1000ft
Max. Pull Tension: 68 lbs
Min. Bend Radius/Minor Axis: 2.5 in

Standards

NEC/(UL) Compliance: CM
UL AWM Style Compliance: AWM 1354
CPR Euroclass: Eca
RG Type: 59
Series Type: 59

Applicable Environmental and Other Programs

Environmental Space: Indoor/Outdoor
EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/11/EC (BFR): Yes
EU Directive 2011/65/EU (RoHS 2): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive 2015/863/EU (RoHS 2 amendment): Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: No
MII Order #39 (China RoHS): Yes

Suitability

Suitability – Aerial: Yes – When supported by messenger wire
Suitability – Indoor: Yes
Suitability – Outdoor: Yes

Flammability, LS0H, Toxicity Testing

UL Flammability: UL1685 UL Loading
UL voltage rating: 30 V RMS

Plenum/Non-Plenum

Plenum (Y/N): No

Related Part Numbers

Variants
Item # Color Put-Up Type Length UPC/EAN
1426A.00152 Black Reel 152 m 8719605001078
1426A.00U305 Black UnReel 305 m 8719605001092
1426A.00500 Black Reel 500 m 8719605001085
1426A 010U1000 Black UnReel 1,000 ft 612825357902

History

Update and Revision: Revision Number: 0.404 Revision Date: 12-19-2022
