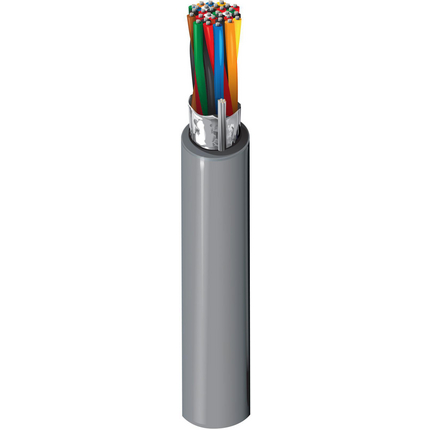

1425A - RS232/422 Low Cap, #24-15pr, FPE, O/A Foil, PVC Jkt, CM, 100?

1425A – RS232/422 Low Cap, #24-15pr, FPE, O/A Foil, PVC Jkt, CM, 100?

Call for Price

Compare
SKU: 1425A Categories: , , ,

Description

Product Overview

Suitable Applications: RS-232 extended distance applications; RS-423 applications; computer communications; low voltage analog signals (4-20ma, 0-10v, …); low voltage digital control (24v, …); line level audio; panel wiring

Construction Details

Conductor
Element No. of Elements Size Stranding Material
Pair(s) 15 24 AWG 7×32 TC – Tinned Copper
Insulation
Element Material Nom. Thickness Color Code
Pair(s) PE – Polyethylene (Foam) 0.0125 in (0.318 mm) White/Blue Stripe & Blue/White Stripe, White/Orange Stripe & Orange/White Stripe, White/Green Stripe & Green/White Stripe, White/Brown Stripe & Brown/White Stripe, White/Gray Stripe & Gray/White Stripe, Red/Blue Stripe & Blue/Red Stripe, Red/Orange Stripe & Orange/Red Stripe, Red/Green Stripe & Green/Red Stripe, Red/Brown Stripe & Brown/Red Stripe, Red/Gray Stripe & Gray/Red Stripe, Black/Blue Stripe & Blue/Black Stripe, Black/Orange Stripe & Orange/Black Stripe, Black/Green Stripe & Green/Black Stripe, Black/Brown Stripe & Brown/Black Stripe, Black/Gray Stripe & Gray/Black Stripe
Outer Shield
Shield Type Material Coverage Drainwire Type
Tape Bi-Laminate (Alum+Poly) 100% 24 AWG (7×32) TC
Outer Jacket
Material Nom. Thickness Nom. Diameter
PVC – Polyvinyl Chloride 0.040 in (1.0 mm) 0.455 in (11.6 mm)
Overall Cable Diameter (Nominal): 0.455 in (11.6 mm)

Electrical Characteristics

Electricals
Element Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Nom. Capacitance Cond-to-Other (Conds + Shield) Nom. Characteristic Impedence Nom. Velocity of Prop. Max. Current
Pair(s) 24 Ohm/1000ft (79 Ohm/km) 13 pF/ft (43 pF/m) 22 pF/ft (72 pF/m) 100 Ohm 78% 1.8 Amps per Conductor at 25ºC
Voltage
UL Voltage Rating
300 V (CM), 30 V (UL AWM 2919)

Mechanical Characteristics

Temperature
Operating
-20°C to +80°C
Max. Pull Tension: 165 lbs (74.8 kg)
Bulk Cable Weight: 90 lbs/1000ft (130 kg/km)

Standards and Compliance

Flammability / Reaction to Fire: UL1685 UL Loading
NEC / UL Compliance: Article 800, CM
AWM Compliance: AWM 2919
CEC / C(UL) Compliance: CM
European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance: China RoHS II (GB/T 26572-2011)

Product Notes

Notes: Datalene® insulation features include low dielectric constant and a dissipation factor for high-speed, low distortion data handling. Physical properties include good crush resistance and light weight.

History

Update and Revision: Revision Number: 0.332 Revision Date: 12-22-2023

Part Numbers

Variants
Item # Color UPC Footnote
1425A 0601000 Chrome 612825115137 C
1425A 060500 Chrome 612825115144 C
