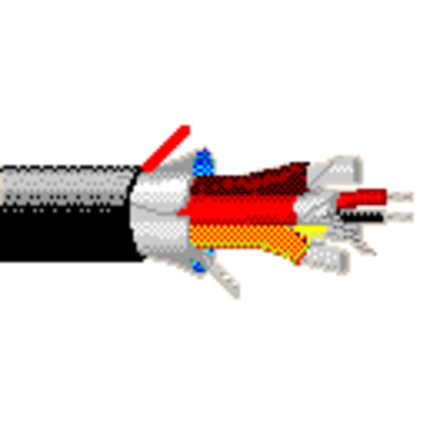

1414R - Audio Snake Cable, #24-24pr, TC, Indiv. Shielded, CMR

1414R – Audio Snake Cable, #24-24pr, TC, Indiv. Shielded, CMR

Call for Price

Compare
SKU: 1414R Categories: , , , ,

Description

Product Overview

Suitable Applications: Multi-channel interconnect between audio equipment such as microphones, speakers, amplifiers, mixing consoles; Live events or studio sound; Analog audio

Physical Characteristics (Overall)

Conductor
AWG Stranding Material Nominal Diameter No. of Pairs
24 7×32 TC – Tinned Copper 0.024 in 24
Conductor Count: 48
Total Number of Pairs: 24
Insulation
Material Nominal Diameter Nominal Wall Thickness
PP – Polypropylene 0.04 in 0.008 in
Color Chart
Number Color
1 Brown and Numbered 1
2 Red and Numbered 2
3 Orange and Numbered 3
4 Yellow and Numbered 4
5 Green and Numbered 5
6 Blue and Numbered 6
7 Purple and Numbered7
8 Gray and Numbered 8
9 White and Numbered 9
10 Black and Numbered 10
11 Tan and Numbered 11
12 Pink and Numbered 12
13 Gray/Brown Stripe and Numbered 13
14 Gray/Red Stripe and Numbered 14
15 Gray/Orange Stripe and Numbered 15
16 Gray/Yellow Stripe and Numbered 16
17 Gray/Green Stripe and Numbered 17
18 Gray/Blue Stripe and Numbered 18
19 Gray/Purple Stripe and Numbered 19
20 Gray/Gray Stripe and Numbered 20
21 Gray/White Stripe and Numbered 21
22 Gray/Black Stripe and Numbered 22
23 Gray/Tan Stripe and Numbered 23
24 Gray/Pink Stripe and Numbered 24
1 Red
2 Black
Inner Shield
Type Material Material Trade Name Coverage [%] Drainwire Material Drainwire Diameter Drainwire AWG Drainwire Construction n x D
Tape Bi-Laminate (Alum+Poly) Beldfoil® 100% TC – Tinned Copper 0.024 in 24 7×32
Inner Jacket
Material Nominal Diameter Nominal Wall Thickness
PVC – Polyvinyl Chloride 0.113 in 0.015 in
Outer Shield
Type Material Material Trade Name Coverage [%] Drainwire Material Drainwire Diameter Drainwire AWG Drainwire Construction n x D
Tape Bi-Laminate (Alum+Poly) Beldfoil® 100% TC – Tinned Copper 0.036 in 18 7×26
Outer Jacket
Material Nominal Diameter Nominal Wall Thickness Ripcord
PVC – Polyvinyl Chloride 0.801 in 0.065 in Yes

Electrical Characteristics

Conductor DCR
Individual Pair Nominal Shield DCR Nominal Conductor DCR Nominal Conductor DCR Conductor Resistance Nominal Outer Shield DCR
15.9 Ohm/1000ft 23.3 Ohm/1000ft 23.3 Ohm/1000ft 6 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Conductor Nom. Capacitance Conductor to Other Conductor to Shield
31 pF/ft 58 pF/ft
Inductance
Nominal Inductance
0.18 µH/ft
Impedance
Nominal Characteristic Impedance
50 Ohm
Delay
Nominal Velocity of Propagation (VP) [%]
66%
Current
Max. Recommended Current [A]
1.05 Amps per Conductor at 25ºC
Voltage
UL Voltage Rating
300 V RMS

Temperature Range

Operating Temperature Range: -30°C To +75°C

Mechanical Characteristics

Bulk Cable Weight: 332 lbs/1000ft
Max. Pull Tension: 418 lbs
Min. Bend Radius/Minor Axis: 8 in

Standards

NEC/(UL) Compliance: CMR
CEC/C(UL) Compliance: CMG
CPR Euroclass: Eca

Applicable Environmental and Other Programs

Environmental Space: Indoor – Riser
EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/11/EC (BFR): Yes
EU Directive 2011/65/EU (RoHS 2): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive 2015/863/EU (RoHS 2 amendment): Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
MII Order #39 (China RoHS): Yes

Suitability

Suitability – Indoor: Yes

Flammability, LS0H, Toxicity Testing

UL Flammability: UL1666 Riser
CSA Flammability: FT4
IEC Flammability: IEC 60332-1-2
UL voltage rating: 300 V RMS

Plenum/Non-Plenum

Plenum (Y/N): No

Related Part Numbers

Variants
Item # Color Put-Up Type Length UPC
1414R 010500 Black Reel 500 ft 612825114901
1414R 0101000 Black Reel 1,000 ft 612825114895
Footnote: C – CRATE REEL PUT-UP.

Product Notes

Notes: Pair jackets and shields bonded so both strip simultaneously. Beldfoil® provides high reliability with ease of termination.

History

Update and Revision: Revision Number: 0.402 Revision Date: 01-10-2024
