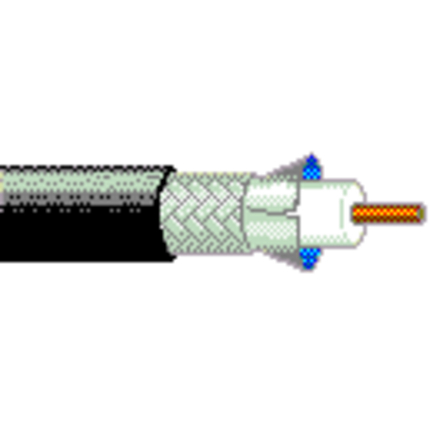

1371R - Serial Digital Coax, Sub-miniature, #23 Solid BC, Foil + 85% TC Braid, CMP

1371R – Serial Digital Coax, Sub-miniature, #23 Solid BC, Foil + 85% TC Braid, CMP

Call for Price

Compare
SKU: 1371R Categories: , , ,

Description

Physical Characteristics (Overall)

Conductor
AWG Stranding Material Nominal Diameter No. of Coax
23 Solid BC – Bare Copper 0.023 in 1
Conductor Count: 1
Insulation
Material Nominal Diameter
PE – Polyethylene (Foam) 0.102 in
Table Notes: Gas Injected
Outer Shield
Type Layer Material Material Trade Name Coverage [%]
Tape 1 Tri-Laminate (Alum+Poly+Alum) Duobond® II 100%
Braid 2 Tinned Copper (TC) 85%
Outer Jacket
Material Nominal Diameter
PVC – Polyvinyl Chloride 0.16 in

Electrical Characteristics

Conductor DCR
Nominal Conductor DCR Nominal Conductor DCR Conductor Resistance Nominal Outer Shield DCR Outer Conductor DCR
20.1 Ohm/1000ft 20.1 Ohm/1000ft 4.6 Ohm/1000ft 4.6 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Shield
16.3 pF/ft
Inductance
Nominal Inductance
0.106 µH/ft
Impedance
Nominal Characteristic Impedance
75 Ohm
Return Loss (RL)
Frequency [MHz] Minimum Return (RL)
5-3000 MHz 15 dB
High Frequency (Nominal/Typical)
Frequency [MHz] Nom. Insertion Loss
1 MHz 0.39 dB/100ft
3.58 MHz 0.78 dB/100ft
5 MHz 0.92 dB/100ft
6 MHz 1 dB/100ft
7 MHz 1.08 dB/100ft
10 MHz 1.2 dB/100ft
12 MHz 1.3 dB/100ft
25 MHz 1.8 dB/100ft
67.5 MHz 2.83 dB/100ft
71.5 MHz 3.06 dB/100ft
88.5 MHz 3.16 dB/100ft
100 MHz 3.33 dB/100ft
135 MHz 3.81 dB/100ft
143 MHz 3.92 dB/100ft
180 MHz 4.38 dB/100ft
270 MHz 5.4 dB/100ft
360 MHz 6.2 dB/100ft
540 MHz 7.7 dB/100ft
720 MHz 9.47 dB/100ft
750 MHz 9.59 dB/100ft
1000 MHz 10.5 dB/100ft
1500 MHz 13 dB/100ft
2000 MHz 15.1 dB/100ft
2250 MHz 16 dB/100ft
3000 MHz 18.5 dB/100ft
Delay
Nominal Delay Nominal Velocity of Propagation (VP) [%]
1.24 ns/ft 82%
Voltage
UL Voltage Rating
300 V RMS

Temperature Range

UL Temp Rating: 75°C
Operating Temperature Range: -30°C To +75°C

Mechanical Characteristics

Bulk Cable Weight: 15.5 lbs/1000ft
Max. Pull Tension: 36 lbs
Min. Bend Radius/Minor Axis: 1.5 in

Standards

NEC/(UL) Compliance: CMR
CEC/C(UL) Compliance: CMR
RG Type: Mini 59

Applicable Environmental and Other Programs

Environmental Space: Indoor – Riser
EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/11/EC (BFR): Yes
EU Directive 2011/65/EU (RoHS 2): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive 2015/863/EU (RoHS 2 amendment): Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
MII Order #39 (China RoHS): Yes

Suitability

Suitability – Indoor: Yes
Suitability – Outdoor: No

Flammability, LS0H, Toxicity Testing

UL Flammability: UL1666 Vertical Shaft
UL voltage rating: 300 V RMS

Plenum/Non-Plenum

Plenum (Y/N): No
Plenum Number: 1371P

Related Part Numbers

Variants
Item # Color Put-Up Type Length UPC
1371R 010500 Black Reel 500 ft 612825113911
1371R 0101000 Black Reel 1,000 ft 612825113904
1371R 006500 Blue, Light Reel 500 ft 612825113836
1371R 0061000 Blue, Light Reel 1,000 ft 612825113829
1371R 001500 Brown Reel 500 ft 612825113751
1371R 0011000 Brown Reel 1,000 ft 612825113744
1371R 008500 Gray Reel 500 ft 612825113874
1371R 0081000 Gray Reel 1,000 ft 612825113867
1371R N3U500 Green, Mil Reel 500 ft 612825113737
1371R N3U1000 Green, Mil Reel 1,000 ft 612825113720
1371R 003500 Orange Reel 500 ft 612825113799
1371R 0031000 Orange Reel 1,000 ft 612825113782
1371R 002500 Red Reel 500 ft 612825113775
1371R 0021000 Red Reel 1,000 ft 612825113768
1371R 007500 Violet Reel 500 ft 612825113850
1371R 0071000 Violet Reel 1,000 ft 612825113843
1371R 009500 White Reel 500 ft 612825113898
1371R 0091000 White Reel 1,000 ft 612825113881
1371R 004500 Yellow Reel 500 ft 612825113812
1371R 0041000 Yellow Reel 1,000 ft 612825113805

History

Update and Revision: Revision Number: 0.366 Revision Date: 11-09-2022
