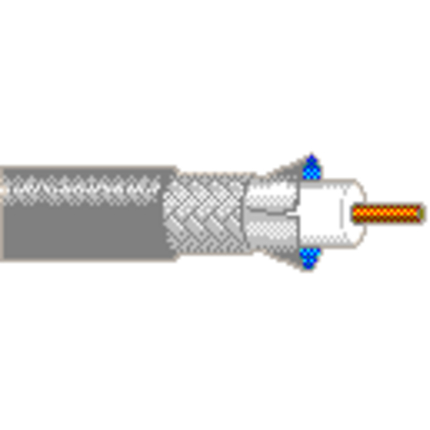

1370P - Serial Digital Coax, RG59 Type, 20 AWG Solid BC, Foil + 85% TC Braid, CMP

1370P – Serial Digital Coax, RG59 Type, 20 AWG Solid BC, Foil + 85% TC Braid, CMP

Call for Price

Compare
SKU: 1370P Categories: , , ,

Description

Product Overview

Suitable Applications: Commercial Video

Physical Characteristics (Overall)

Conductor
AWG Stranding Material Nominal Diameter No. of Coax
20 Solid BC – Bare Copper 0.032 in 1
Conductor Count: 1
Insulation
Material Material Trade Name Nominal Diameter
FEP – Fluorinated Ethylene Propylene (Foam) Teflon® 0.133 in
Outer Shield
Type Layer Material Material Trade Name Coverage [%]
Tape 1 Tri-Laminate (Alum+Poly+Alum) Duobond® II 100%
Braid 2 Tinned Copper (TC) 85%
Outer Jacket
Material Material Trade Name Nominal Diameter
PVC – Polyvinyl Chloride Flamarrest® 0.192 in

Electrical Characteristics

Conductor DCR
Nominal Conductor DCR Nominal Outer Shield DCR Outer Conductor DCR
10.1 Ohm/1000ft 4.1 Ohm/1000ft 4.1 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Shield
16.1 pF/ft
Inductance
Nominal Inductance
0.097 µH/ft
Impedance
Nominal Characteristic Impedance
75 Ohm
Return Loss (RL)
Frequency [MHz] Minimum Return (RL)
5 – 3000 MHz 15 dB
High Frequency (Nominal/Typical)
Frequency [MHz] Nom. Insertion Loss
1 MHz 0.29 dB/100ft
3.58 MHz 0.62 dB/100ft
5 MHz 0.7 dB/100ft
7 MHz 0.82 dB/100ft
10 MHz 1.05 dB/100ft
67.5 MHz 2.2 dB/100ft
71.5 MHz 2.25 dB/100ft
100 MHz 2.7 dB/100ft
135 MHz 3.2 dB/100ft
143 MHz 3.25 dB/100ft
180 MHz 3.65 dB/100ft
270 MHz 4.55 dB/100ft
360 MHz 5.25 dB/100ft
540 MHz 6.4 dB/100ft
720 MHz 7.3 dB/100ft
750 MHz 7.5 dB/100ft
1000 MHz 9.4 dB/100ft
1500 MHz 12.8 dB/100ft
2250 MHz 17.5 dB/100ft
3000 MHz 21.9 dB/100ft
Delay
Nominal Delay Nominal Velocity of Propagation (VP) [%]
1.21 ns/ft 84%
High Frequency
Min. RL (Return Loss) [dB]
15 dB
Voltage
UL Voltage Rating
300 V RMS
Electrical Characteristics Notes: Return Loss: Fixed bridge and termination

Temperature Range

UL Temp Rating: 75°C
Operating Temperature Range: 0°C To +75°C

Mechanical Characteristics

Bulk Cable Weight: 24 lbs/1000ft
Max. Pull Tension: 37 lbs
Min. Bend Radius/Minor Axis: 2 in

Standards

NEC/(UL) Compliance: CMP
CEC/C(UL) Compliance: CMP
RG Type: 59

Applicable Environmental and Other Programs

Environmental Space: Indoor – Plenum
EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/11/EC (BFR): Yes
EU Directive 2011/65/EU (RoHS 2): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
MII Order #39 (China RoHS): Yes

Suitability

Suitability – Indoor: Yes
Suitability – Outdoor: No

Flammability, LS0H, Toxicity Testing

UL Flammability: NFPA 262
UL voltage rating: 300 V RMS

Plenum/Non-Plenum

Plenum (Y/N): Yes

Related Part Numbers

Non-Plenum Number: 1370R
Variants
Item # Color Put-Up Type Length UPC
1370P 010500 Black Reel 500 ft 612825113317
1370P 0101000 Black Reel 1,000 ft 612825113300
1370P 006500 Blue, Light Reel 500 ft 612825113232
1370P 0061000 Blue, Light Reel 1,000 ft 612825113225
1370P 001500 Brown Reel 500 ft 612825113157
1370P 0011000 Brown Reel 1,000 ft 612825113140
1370P 008500 Gray Reel 500 ft 612825113270
1370P 0081000 Gray Reel 1,000 ft 612825113263
1370P N3U500 Green, Mil Reel 500 ft 612825113133
1370P N3U1000 Green, Mil Reel 1,000 ft 612825113126
1370P 003500 Orange Reel 500 ft 612825113195
1370P 0031000 Orange Reel 1,000 ft 612825113188
1370P 002500 Red Reel 500 ft 612825113171
1370P 0021000 Red Reel 1,000 ft 612825113164
1370P 007500 Violet Reel 500 ft 612825113256
1370P 0071000 Violet Reel 1,000 ft 612825113249
1370P 009500 White Reel 500 ft 612825113294
1370P 0091000 White Reel 1,000 ft 612825113287
1370P 004500 Yellow Reel 500 ft 612825113218
1370P 0041000 Yellow Reel 1,000 ft 612825113201

History

Update and Revision: Revision Number: 0.329 Revision Date: 11-09-2022
