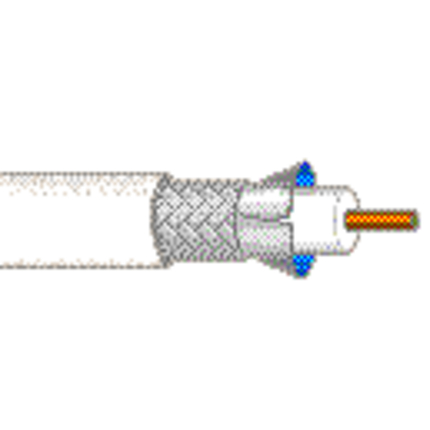

1369P - Serial Digital Coax, RG6, #18 Solid BC, Foil + 85% TC Braid, CMP

1369P – Serial Digital Coax, RG6, #18 Solid BC, Foil + 85% TC Braid, CMP

Call for Price

Compare
SKU: 1369P Categories: , , ,

Description

Product Overview

Suitable Applications: Commercial Video

Physical Characteristics (Overall)

Conductor
AWG Stranding Material Nominal Diameter No. of Coax
18 Solid BC – Bare Copper 0.04 in 1
Conductor Count: 1
Insulation
Material Material Trade Name Nominal Diameter
FEP – Fluorinated Ethylene Propylene (Foam) Teflon® 0.168 in
Outer Shield
Type Layer Material Material Trade Name Coverage [%]
Tape 1 Tri-Laminate (Alum+Poly+Alum) Duobond® II 100%
Braid 2 Tinned Copper (TC) 85%
Outer Jacket
Material Material Trade Name Nominal Diameter
PVC – Polyvinyl Chloride Flamarrest® 0.231 in

Electrical Characteristics

Conductor DCR
Nominal Conductor DCR Nominal Conductor DCR Conductor Resistance Nominal Outer Shield DCR Outer Conductor DCR
6.4 Ohm/1000ft 6.4 Ohm/1000ft 3.6 Ohm/1000ft 3.6 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Shield
16.3 pF/ft
Inductance
Nominal Inductance
0.103 µH/ft
Impedance
Nominal Characteristic Impedance
75 Ohm
Return Loss (RL)
Frequency [MHz] Minimum Return (RL)
5-3000 MHz 15 dB
High Frequency (Nominal/Typical)
Frequency [MHz] Nom. Insertion Loss
1 MHz 0.24 dB/100ft
3.58 MHz 0.45 dB/100ft
5 MHz 0.55 dB/100ft
7 MHz 0.65 dB/100ft
10 MHz 0.75 dB/100ft
67.5 MHz 1.74 dB/100ft
71.5 MHz 1.78 dB/100ft
88.5 MHz 1.94 dB/100ft
100 MHz 2.1 dB/100ft
135 MHz 2.4 dB/100ft
143 MHz 2.5 dB/100ft
180 MHz 2.8 dB/100ft
270 MHz 3.4 dB/100ft
360 MHz 4 dB/100ft
540 MHz 5.2 dB/100ft
720 MHz 6.1 dB/100ft
750 MHz 6.2 dB/100ft
1000 MHz 7.3 dB/100ft
1500 MHz 9.2 dB/100ft
2000 MHz 10.9 dB/100ft
2250 MHz 11.6 dB/100ft
3000 MHz 13.7 dB/100ft
Delay
Nominal Delay Nominal Velocity of Propagation (VP) [%]
1.22 ns/ft 83%
Voltage
UL Voltage Rating
300 V RMS

Temperature Range

UL Temp Rating: 75°C
Operating Temperature Range: -20°C To +75°C

Mechanical Characteristics

Bulk Cable Weight: 33.5 lbs/1000ft
Max. Pull Tension: 64 lbs
Min. Bend Radius/Minor Axis: 2.5 in

Standards

NEC/(UL) Compliance: CMP
CEC/C(UL) Compliance: CMP
RG Type: 6

Applicable Environmental and Other Programs

Environmental Space: Indoor – Plenum
EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/11/EC (BFR): Yes
EU Directive 2011/65/EU (RoHS 2): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive 2015/863/EU (RoHS 2 amendment): Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: No
MII Order #39 (China RoHS): Yes

Suitability

Suitability – Indoor: Yes
Suitability – Outdoor: No

Flammability, LS0H, Toxicity Testing

UL Flammability: NFPA 262
CSA Flammability: FT6
UL voltage rating: 300 V RMS

Plenum/Non-Plenum

Plenum (Y/N): Yes

Related Part Numbers

Non-Plenum Number: 1369R
Variants
Item # Color Put-Up Type Length UPC
1369P 010500 Black Reel 500 ft 612825112914
1369P 0101000 Black Reel 1,000 ft 612825112907
1369P 006500 Blue, Light Reel 500 ft 612825112839
1369P 0061000 Blue, Light Reel 1,000 ft 612825112822
1369P 001500 Brown Reel 500 ft 612825112754
1369P 0011000 Brown Reel 1,000 ft 612825112747
1369P 008500 Gray Reel 500 ft 612825112877
1369P 0081000 Gray Reel 1,000 ft 612825112860
1369P N3U500 Green, Mil Reel 500 ft 612825112730
1369P N3U1000 Green, Mil Reel 1,000 ft 612825112723
1369P 003500 Orange Reel 500 ft 612825112792
1369P 0031000 Orange Reel 1,000 ft 612825112785
1369P 002500 Red Reel 500 ft 612825112778
1369P 0021000 Red Reel 1,000 ft 612825112761
1369P 007500 Violet Reel 500 ft 612825112853
1369P 0071000 Violet Reel 1,000 ft 612825112846
1369P 009500 White Reel 500 ft 612825112891
1369P 0091000 White Reel 1,000 ft 612825112884
1369P 004500 Yellow Reel 500 ft 612825112815
1369P 0041000 Yellow Reel 1,000 ft 612825112808

Product Notes

Notes: Teflon® is a registered trademark of E. I. duPont de Nemours and Co. used under license by Belden, Inc.

History

Update and Revision: Revision Number: 0.319 Revision Date: 11-09-2022
