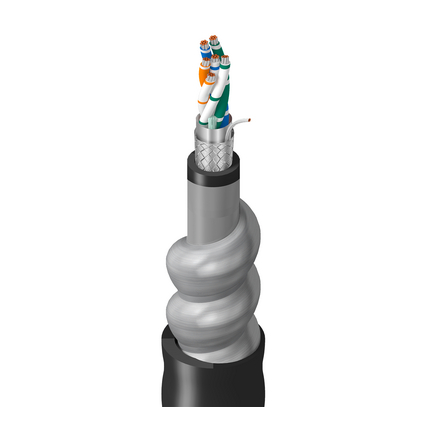

133108A - RS485, 3 Pr #22 Str TC, PE Ins, OS+TC Brd, PVC Jkt, SIA Armor, PVC Jkt, CM, PLTC

133108A – RS485, 3 Pr #22 Str TC, PE Ins, OS+TC Brd, PVC Jkt, SIA Armor, PVC Jkt, CM, PLTC

Call for Price

Compare
SKU: 133108A Categories: , , ,

Description

Product Overview

Suitable Applications: exposure to rodent, crush, or cut through force, burial, serial communication (RS-485 standard) comprising of PLCs, VFDs, HMIs, motors, RTU, SCADA, etc. within noisy environments over long distance, outdoor such as solar, lighting, etc.

Construction Details

Conductor
Element No. of Elements Size Stranding Material
Pair(s) 3 22 AWG 7×30 TC – Tinned Copper
Insulation
Element Material Nom. Thickness Nom. Insulation Diameter Color Code Notes
Pair(s) PE – Polyethylene (Foam) 0.023 in (0.58 mm) 0.075 in (1.9 mm) White/Blue Stripe & Blue/White Stripe, White/Orange Stripe & Orange/White Stripe, White/Green Stripe & Green/White Stripe HDPE
Outer Shield
Shield Type Material Coverage Drainwire Type
Tape Bi-Laminate (Alum+Poly) 100% 22 AWG (7×30) TC
Braid Tinned Copper (TC) 65%
Inner Jacket
Material Nom. Thickness Nom. Diameter
PVC – Polyvinyl Chloride 0.053 in (1.3 mm) 0.374 in (9.50 mm)
Armor
Armor Type & Material
SIA – Steel Interlock Armor
Outer Jacket
Material Nom. Thickness Nom. Diameter
PVC – Polyvinyl Chloride 0.050 in (1.3 mm) 0.723 in (18.4 mm)
Overall Cable Diameter (Nominal): 0.723 in (18.4 mm)

Electrical Characteristics

Electricals
Element Nom. Conductor DCR Nom. Inner Shield DCR Nom. Capacitance Cond-to-Cond Nom. Capacitance Cond-to-Shield Nom. Characteristic Impedence Nom. Velocity of Prop.
Pair(s) 17.5 Ohm/1000ft (57.4 Ohm/km) 1.5 Ohm/1000ft (4.9 Ohm/km) 120 Ohm 78%
11.0 pF/ft (36.1 pF/m) 20.90 pF/ft 120 Ohm
High Frequency (Nominal/Typical)
Element Frequency [kHz]
Pair(s) 125
500
High Frequency
Max. Insertion Loss (Attenuation)
0.29 dB/100ft
0.5 dB/100ft
Voltage
UL Voltage Rating
300 V (CM, PLTC)

Mechanical Characteristics

Temperature
UL Temperature Operating
60°C -25°C to +60°C
Table Notes: -40C
Max. Pull Tension: 200 lbs (91 kg)
Bulk Cable Weight: 427 lbs/1000ft (635 kg/km)

Standards and Compliance

Environmental Suitability: Indoor, Outdoor, Sunlight Resistance
Sustainability: CA Prop 65
Flammability / Reaction to Fire: FT4
NEC / UL Compliance: Article 725, Article 800, CM, PLTC
CEC / C(UL) Compliance: CMG HLBCD
European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance: China RoHS II (GB/T 26572-2011)

History

Update and Revision: Revision Number: 0.67 Revision Date: 12-22-2023
