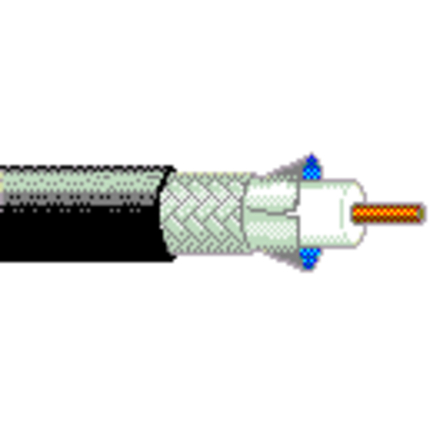

1282P - RGB Video, Mini Hi-Res, #25 Solid TC, Foil + 95% TC Braid, CMP

1282P – RGB Video, Mini Hi-Res, #25 Solid TC, Foil + 95% TC Braid, CMP

Call for Price

Compare
SKU: 1282P Categories: , , ,

Description

Product Overview

Suitable Applications: Analog Video, Digital Video, Mini Hi-Res, video, VGA, SVGA, 825, RGB, Composite Video, ComponentVideo, Video Distribution, Graphic Displays, special effects editing, animation, post production. Home Theater, boardroms, office, casino, church, synagogue, house of worship, teleconferencing

Physical Characteristics (Overall)

Conductor
AWG Stranding Material Nominal Diameter No. of Coax
25 Solid TC – Tinned Copper 0.018 in 1
Conductor Count: 1
Insulation
Material Nominal Diameter
PFA – Perfluoroalkoxy (Foam) 0.074 in
Outer Shield
Type Layer Material Material Trade Name Coverage [%]
Tape 1 Tri-Laminate (Alum+Poly+Alum) Duofoil® 100%
Braid 2 Tinned Copper (TC) 95%
Outer Jacket
Material Material Trade Name Nominal Diameter
PVC – Polyvinyl Chloride Flamarrest® 0.122 in

Electrical Characteristics

Conductor DCR
Nominal Conductor DCR Nominal Conductor DCR Conductor Resistance Nominal Outer Shield DCR Outer Conductor DCR
31.8 Ohm/1000ft 31.8 Ohm/1000ft 5.8 Ohm/1000ft 5.8 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Shield
17 pF/ft
Inductance
Nominal Inductance
0.106 µH/ft
Impedance
Nominal Characteristic Impedance
75 Ohm
Return Loss (RL)
Frequency [MHz] Minimum Return (RL)
5-850 MHz 20 dB
High Frequency (Nominal/Typical)
Frequency [MHz] Nom. Insertion Loss
1 MHz 0.4 dB/100ft
5 MHz 0.9 dB/100ft
50 MHz 3.7 dB/100ft
100 MHz 5 dB/100ft
200 MHz 7 dB/100ft
400 MHz 10 dB/100ft
700 MHz 14.5 dB/100ft
900 MHz 17 dB/100ft
1000 MHz 17.5 dB/100ft
3000 MHz 37 dB/100ft
Delay
Nominal Delay Nominal Velocity of Propagation (VP) [%]
1.52 ns/ft 81%
Voltage
UL Voltage Rating
300 V RMS

Temperature Range

Non-UL Temp Rating: 75°C
UL Temp Rating: 60°C
Operating Temperature Range: -20°C To +75°C

Mechanical Characteristics

Bulk Cable Weight: 10 lbs/1000ft
Max. Pull Tension: 23 lbs
Min. Bend Radius/Minor Axis: 1.5 in

Standards

NEC/(UL) Compliance: CMP
CEC/C(UL) Compliance: CMP
CPR Euroclass: Eca
RG Type: Sub-miniature 59

Applicable Environmental and Other Programs

Environmental Space: Indoor – Plenum
EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/11/EC (BFR): Yes
EU Directive 2011/65/EU (RoHS 2): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive 2015/863/EU (RoHS 2 amendment): Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
MII Order #39 (China RoHS): Yes

Suitability

Suitability – Aerial: No
Suitability – Indoor: Yes
Suitability – Outdoor: No

Flammability, LS0H, Toxicity Testing

UL Flammability: NFPA 262
CSA Flammability: FT6
UL voltage rating: 300 V RMS

Plenum/Non-Plenum

Plenum (Y/N): Yes

Related Part Numbers

Non-Plenum Number: 1281R
Variants
Item # Color Put-Up Type Length UPC
1282P 0101000 Black Reel 1,000 ft 612825110637
Footnote: C – CRATE REEL PUT-UP.

History

Update and Revision: Revision Number: 0.448 Revision Date: 12-19-2022
