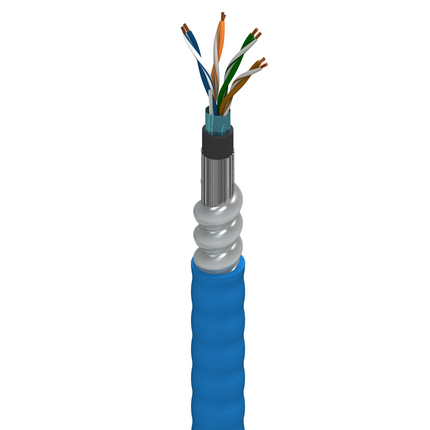

127929A - DataTuff® 5e, 4 Bonded-Pr #24 Sol BC, PO Ins, OS, PVC Jkt, AIA Armor, PVC Jkt, CMG CM -40C

127929A – DataTuff® 5e, 4 Bonded-Pr #24 Sol BC, PO Ins, OS, PVC Jkt, AIA Armor, PVC Jkt, CMG CM -40C

Call for Price

Compare
SKU: 127929A Categories: , , ,

Description

Product Overview

Suitable Applications: mining, harsh environment, IIoT, factory or process automation, IP cameras and devices, data communication, etc. exposure to rodent, crush, or cut through force,

Physical Characteristics (Overall)

Conductor
Element AWG Stranding Material No. of Pairs
Pair(s) 24 Solid BC – Bare Copper 4
Conductor Count: 8
Total Number of Pairs: 4
Insulation
Element Material Nominal Diameter
Pair(s) PO – Polyolefin 0.044 in
Bonded-Pair: Yes
Color Chart
Color
White/Blue Stripe & Blue
White/Orange Stripe & Orange
White/Green Stripe & Green
White/Brown Stripe & Brown
Inner Jacket
Material Nominal Diameter
PVC – Polyvinyl Chloride 0.275 in
Outer Shield
Type Material Material Trade Name Coverage [%]
Tape Bi-Laminate (Alum+Poly) Beldfoil® 100%
Outer Jacket
Material Nominal Diameter Separator Material
PVC – Polyvinyl Chloride 0.583 in Polyester Tape

Construction and Dimensions

Armor
Diameter over Armoring
0.495 in

Electrical Characteristics

Conductor DCR
Max. Conductor DCR
93.8 Ohm/km
Capacitance
Max. Capacitance Unbalance
330 pF/100m
Delay
Max. Delay Max. Delay Skew Nominal Velocity of Propagation (VP) [%]
538 ns/100m 45 ns/100m 70%
High Frequency
Frequency [MHz] Max. Insertion Loss (Attenuation) Min. NEXT [dB] Min. PSNEXT [dB] Min. ACR [dB] Min. PSACR [dB] Min. ACRF (ELFEXT) [dB] Min. PSACRF (PSELFEXT) [dB] Min. RL (Return Loss) [dB] Min. SRL (Structural Return Loss) Max./Min. Input Impedance (unFitted) Max./Min. Fitted Impedance
1 MHz 2.0 dB/100m 65.3 dB 62.3 dB 63 dB 60 dB 63.8 dB 60.8 dB 20 dB 23 dB 100 ± 15 Ohm 100 ± 15 Ohm
4 MHz 4.1 dB/100m 56.3 dB 53.3 dB 51 dB 49 dB 51.7 dB 48.7 dB 23 dB 23 dB 100 ± 15 Ohm 100 ± 15 Ohm
8 MHz 5.8 dB/100m 51.8 dB 48.8 dB 46 dB 43 dB 45.7 dB 42.7 dB 24.5 dB 24.5 dB 100 ± 15 Ohm 100 ± 15 Ohm
10 MHz 6.5 dB/100m 50.3 dB 47.3 dB 43 dB 41 dB 43.8 dB 40.8 dB 25 dB 25 dB 100 ± 15 Ohm 100 ± 15 Ohm
16 MHz 8.2 dB/100m 47.3 dB 44.3 dB 39 dB 36 dB 39.7 dB 36.7 dB 25 dB 25 dB 100 ± 15 Ohm 100 ± 15 Ohm
20 MHz 9.3 dB/100m 45.8 dB 42.8 dB 36.5 dB 33.5 dB 37.7 dB 34.7 dB 25 dB 25 dB 100 ± 15 Ohm 100 ± 15 Ohm
25 MHz 10.4 dB/100m 44.3 dB 41.3 dB 33.9 dB 30.9 dB 35.8 dB 32.8 dB 24.3 dB 24.3 dB 100 ± 15 Ohm 100 ± 15 Ohm
31.25 MHz 11.7 dB/100m 42.9 dB 39.9 dB 31 dB 28 dB 33.9 dB 30.9 dB 23.6 dB 23.6 dB 100 ± 15 Ohm 100 ± 15 Ohm
62.5 MHz 17.0 dB/100m 38.4 dB 35.4 dB 22 dB 19 dB 27.8 dB 24.8 dB 21.5 dB 21.5 dB 100 ± 15 Ohm 100 ± 15 Ohm
100 MHz 22.0 dB/100m 35.3 dB 32.3 dB 14 dB 11 dB 23.8 dB 20.8 dB 20.1 dB 20.1 dB 100 ± 15 Ohm
Voltage
UL Description UL Voltage Rating
CM 300 V

Temperature Range

UL Temp Rating: 75°C
Storage Temperature Range: -40°C To +85°C
Operating Temperature Range: -40°C To +75°C

Mechanical Characteristics

UV Resistance: Yes
Bulk Cable Weight: 134 lbs/1000ft
Max. Pull Tension: 100 lbs

Standards

NEC Articles: Article 800
NEC/(UL) Compliance: CM
CEC/C(UL) Compliance: CMG, HL
ISO/IEC Compliance: ISO/IEC 1801 Cat 5e
CPR Euroclass: Eca
Data Category: Category 5e
TIA/EIA Compliance: ANSI/TIA-568.2-D Category 5e

Applicable Environmental and Other Programs

Environmental Space: Indoor/Outdoor

Suitability

Suitability – Indoor: Yes
Suitability – Oil Resistance: Yes
Suitability – Outdoor: Yes
Suitability – Sunlight Resistance: Yes

Flammability, LS0H, Toxicity Testing

CSA/C(UL) Flammability: FT4
UL Flammability: UL 1685 UL Loading
UL voltage rating: 300 V RMS

Product Notes

Notes: Operating temperatures are subject to length de-rating

History

Update and Revision: Revision Number: 0.317 Revision Date: 12-12-2023
