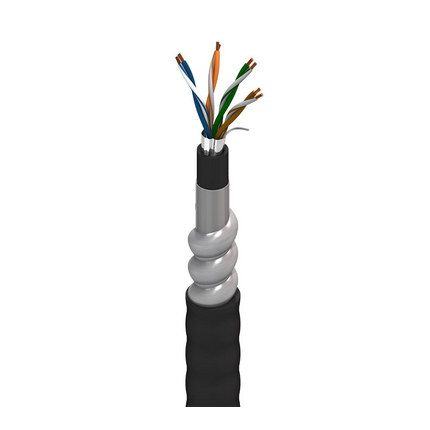

127903A - DataTuff® 5e, 4Pr #22 Sol BC, PO Ins, OS, PVC Jkt, AIA Armor, PVC Jkt, PLTC CMG CM, -40C

127903A – DataTuff® 5e, 4Pr #22 Sol BC, PO Ins, OS, PVC Jkt, AIA Armor, PVC Jkt, PLTC CMG CM, -40C

Call for Price

Compare
SKU: 127903A Categories: , , ,

Description

Product Overview

Suitable Applications: harsh environment, IIoT, factory or process automation, IP cameras and devices, data communication, etc. exposure to rodent, crush, or cut through force, power-limited tray,

Construction Details

Conductor
Element Size Stranding Material No. of Pairs No. of Elements
Pair(s) 22 Solid BC – Bare Copper 4 4
Insulation
Element Material Color Code
Pair(s) PO – Polyolefin White/Blue Stripe & Blue, White/Orange Stripe & Orange, White/Green Stripe & Green, White/Brown Stripe & Brown
Bonded-Pair: Yes
Inner Shield
Shield Type Material Coverage Drainwire Type
Tape Bi-Laminate (Alum+Poly) 100% 22 AWG (7×30) TC
Inner Jacket
Material Nom. Diameter
PVC – Polyvinyl Chloride 0.335 in (8.51 mm)
Outer Shield
Shield Type Material Coverage Drainwire Type
Tape Bi-Laminate (Alum+Poly) 100% 22 AWG (7×30) TC
Armor
Armor Type & Material Armor Thickness Diameter Over Armor
AIA – Aluminum Interlock Armor 0.025 in (0.64 mm) 0.565 in (14.4 mm)
Outer Jacket
Separator Material Nom. Diameter
Polyester Tape PVC – Polyvinyl Chloride 0.655 in (16.6 mm)
Overall Cable Diameter (Nominal): 0.655 in (16.6 mm)

Electrical Characteristics

Electricals
Max. Conductor DCR Max. Mutual Capacitance Max. Capacitance Unbalance
93.8 Ohm/km (28.6 Ohm/1000ft) 17 pF/ft (56 pF/m) 330 pF/100m
Delay
Max. Delay Max. Delay Skew Nom. Velocity of Prop.
538 ns/100m 45 ns/100m 70%
High Frequency
Frequency [MHz] Max. Insertion Loss (Attenuation) Min. NEXT [dB] Min. PSNEXT [dB] Min. ACR [dB] Min. PSACR [dB] Min. ACRF (ELFEXT) [dB] Min. PSACRF (PSELFEXT) [dB] Min. RL (Return Loss) [dB] Max./Min. Input Impedance (unFitted) [Ohm] Max./Min. Fitted Impedance [Ohm]
1 2.0 dB/100m 65.3 62.3 63 60 63.8 60.8 20 100 ± 15 100 ± 15
4 4.1 dB/100m 56.3 53.3 51 49 51.7 48.7 23 100 ± 15 100 ± 15
8 5.8 dB/100m 51.8 48.8 46 43 45.7 42.7 24.5 100 ± 15 100 ± 15
10 6.5 dB/100m 50.3 47.3 43 41 43.8 40.8 25 100 ± 15 100 ± 15
16 8.2 dB/100m 47.3 44.3 39 36 39.7 36.7 25 100 ± 15 100 ± 15
20 9.3 dB/100m 45.8 42.8 36.5 33.5 37.7 34.7 25 100 ± 15 100 ± 15
25 10.4 dB/100m 44.3 41.3 33.9 30.9 35.8 32.8 24.3 100 ± 15 100 ± 15
31.25 11.7 dB/100m 42.9 39.9 31 28 33.9 30.9 23.6 100 ± 15 100 ± 15
62.5 17.0 dB/100m 38.4 35.4 22 19 27.8 24.8 21.5 100 ± 15 100 ± 15
100 22.0 dB/100m 35.3 32.3 14 11 23.8 20.8 20.1 100 ± 15
310 41.8 dB/100m
350 44.9 dB/100m
Voltage
UL Voltage Rating
300 V (CM)

Mechanical Characteristics

Temperature
UL Temperature Operating Storage
75°C -40°C To +75°C -40°C To +75°C
Bend Radius
Stationary Min.
7.86 in (200 mm)
Max. Pull Tension: 100 lbs (45 kg)
Bulk Cable Weight: 157 lbs/1000ft

Standards and Compliance

Environmental Suitability: Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance, UV Resistance, Oil Resistance
Flammability / Reaction to Fire: UL 1685 (UL Loading), FT4
CPR Compliance: CPR Euroclass: Eca
NEC / UL Compliance: Article 800, CM, PLTC
CEC / C(UL) Compliance: CMG, HL, CSA CMG, HL, -40C
Data Category: Category 5e
TIA/EIA Compliance: ANSI/TIA-568.2-D Category 5e
ISO/IEC Compliance: ISO/IEC 1801 Cat 5e

Product Notes

Notes: Operating temperatures are subject to length de-rating

History

Update and Revision: Revision Number: 0.272 Revision Date: 12-12-2023

Part Numbers

Variants
Item # UPC
127903A 0101000 612825439073
127903A 0105000 612825439080
