Description
Item Number
F26521
F26521
Description

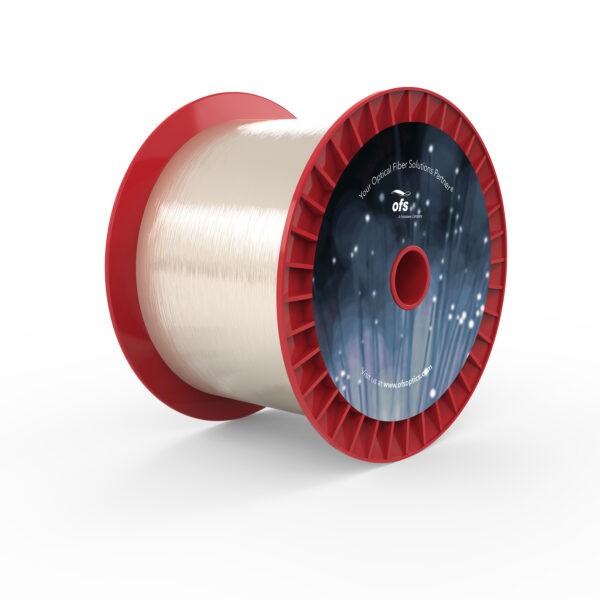

125/155 Coreless Fiber
| Proof Test Level | ≥ 100 (kpsi) |
|---|---|
| Operating Temperature Range | -65 to +300 (ºC) |
| Coating Diameter | 155 (µm) |
| Coating Concentricity | ≥ 80% |
| Coating Material | PYROCOAT® |
| Core Non-Circularity | < 2 (%) |
| Note | OFS polyimide optical fibers are known to operate in environments up to 300 °C. Performance is application dependent. Contact our Technical Sales department to discuss your specific application requirements. 1-860-678-6636 |
| Glass Diameter (detail) | 125 ± 2 (µm) |
| Coating Diameter (detail) | 155 ± 5 (µm) |
| Glass Diameter | 125 (µm) |
| Keyword List | coreless fiber, termination, termination fiber, Termination Fibers |
