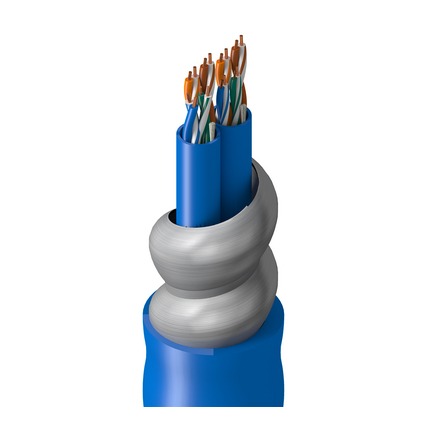

121702A - CAT5e+ Horizontal Bonded-Pair, 2x4pr, UTP, PVC Jkt, CMR, Siamese

121702A – CAT5e+ Horizontal Bonded-Pair, 2x4pr, UTP, PVC Jkt, CMR, Siamese

Call for Price

Compare
SKU: 121702A Categories: , , ,

Description

Product Overview

Suitable Applications: harsh environment, IIoT, factory or process automation, IP cameras and devices, data communication, etc. exposure to rodent, crush, or cut through force,
Patent: This product has one or more applicable patents. More information on patents can be found at https://www.belden.com/patents.

Construction Details

Conductor
Size Stranding Material No. of Pairs
24 Solid BC – Bare Copper 8
Insulation
Material Color Code
PO – Polyolefin White/Blue Stripe & Blue, White/Orange Stripe & Orange, White/Green Stripe & Green, White/Brown Stripe & Brown
Bonded-Pair: Yes
Inner Jacket
Material Nom. Diameter Ripcord
PVC – Polyvinyl Chloride 0.415 x 0.200 in Yes
Armor
Armor Type & Material Armor Thickness Diameter Over Armor
AIA – Aluminum Interlock Armor 0.025 in (0.64 mm) 0.638 in (16.2 mm)
Outer Jacket
Separator Material Nom. Diameter
Polyester Tape PVC – Polyvinyl Chloride 0.738 in (18.7 mm)
Overall Cable Diameter (Nominal): 0.738 in (18.7 mm)

Electrical Characteristics

Electricals
Max. Conductor DCR
90 Ohm/km (27 Ohm/1000ft)
Delay
Nom. Velocity of Prop.
70%
High Frequency
Frequency [MHz] Max. Insertion Loss (Attenuation)
1 2 dB/100m
4 4 dB/100m
8 5.7 dB/100m
10 6.4 dB/100m
16 8.1 dB/100m
20 9.2 dB/100m
25 10.3 dB/100m
31.25 11.6 dB/100m
62.5 16.8 dB/100m
100 21.7 dB/100m
155 27.7 dB/100m
200 32 dB/100m
250 36.4 dB/100m
300 40.5 dB/100m
310 41.3 dB/100m
350 44.3 dB/100m
Voltage
UL Voltage Rating
300 V (CMG)

Mechanical Characteristics

Temperature
UL Temperature Operating Storage
60°C -40°C To +60°C -40°C To +60°C
Bend Radius
Stationary Min.
7.5 in (190 mm)
Max. Pull Tension: 200 lbs (91 kg)
Bulk Cable Weight: 182 lbs/1000ft

Standards and Compliance

Environmental Suitability: Indoor, Indoor
NEC / UL Compliance: CM
CEC / C(UL) Compliance: CM
Data Category: Category 5e
TIA/EIA Compliance: ANSI/TIA-568.2-D Category 5e
European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance: China RoHS II (GB/T 26572-2011)

Product Notes

Notes: Jacket sequentially marked at 2 ft. intervals. U.S. Patents 5,606,151 and 5,734,126. Third party verified to TIA/EIA-568-B.2, Category 5e.

History

Update and Revision: Revision Number: 0.69 Revision Date: 12-12-2023
