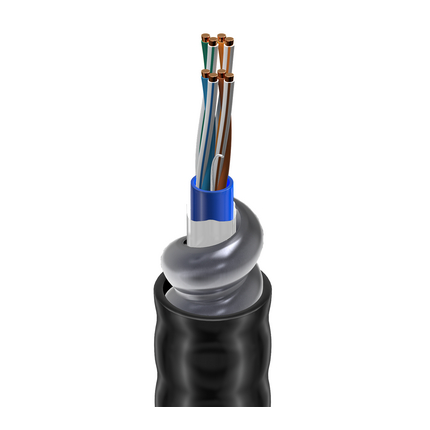

121700A - DataTuff® Cat 5e, 4 Bonded-Pr #24 Sol BC, PO Ins, PVC Jkt, AIA Armor, PVC Jkt, CMG CM

121700A – DataTuff® Cat 5e, 4 Bonded-Pr #24 Sol BC, PO Ins, PVC Jkt, AIA Armor, PVC Jkt, CMG CM

Call for Price

Compare
SKU: 121700A Categories: , , ,

Description

Product Overview

Suitable Applications: harsh environment, IIoT, factory or process automation, IP cameras and devices, data communication, etc. exposure to rodent, crush, or cut through force,
Patent: This product has one or more applicable patents. More information on patents can be found at https://www.belden.com/patents.

Construction Details

Conductor
Element Size Stranding Material No. of Pairs No. of Elements
Pair(s) 24 AWG Solid BC – Bare Copper 4 4
Insulation
Material Color Code
PO – Polyolefin White/Blue Stripe & Blue, White/Orange Stripe & Orange, White/Green Stripe & Green, White/Brown Stripe & Brown
Bonded-Pair: Yes
Inner Jacket
Material Nom. Diameter Ripcord
PVC – Polyvinyl Chloride 0.202 in (5.13 mm) Yes
Armor
Armor Type & Material
AIA – Aluminum Interlock Armor
Outer Jacket
Material Nom. Diameter
PVC – Polyvinyl Chloride 0.553 in (14.0 mm)
Overall Cable Diameter (Nominal): 0.553 in (14.0 mm)

Electrical Characteristics

Electricals
Max. Conductor DCR Max. Capacitance Unbalance
93.8 Ohm/km (28.6 Ohm/1000ft) 66 pF/ft
Delay
Max. Delay Max. Delay Skew Nom. Velocity of Prop.
510 ns/100m 25 ns/100m 70%
High Frequency
Frequency [MHz] Max. Insertion Loss (Attenuation) Min. NEXT [dB] Min. PSNEXT [dB] Min. ACR [dB] Min. PSACR [dB] Min. ACRF (ELFEXT) [dB] Min. PSACRF (PSELFEXT) [dB] Min. RL (Return Loss) [dB] Max./Min. Input Impedance (unFitted) [Ohm] Max./Min. Fitted Impedance [Ohm]
1 2.0 dB/100m 65.3 65.3 63.3 63.3 63.8 60.8 20 100 ± 12 105 ± 10
4 4.0 dB/100m 56.3 56.3 52.3 52.3 51.7 48.7 23 100 ± 12 100 ± 10
8 5.7 dB/100m 51.8 51.8 46.1 46.1 45.7 42.7 24.5 100 ± 12 100 ± 10
10 6.4 dB/100m 50.3 50.3 43.9 43.9 43.8 40.8 25 100 ± 12 100 ± 10
16 8.1 dB/100m 47.3 47.3 39.1 39.1 39.7 36.7 25 100 ± 12 100 ± 10
20 9.2 dB/100m 45.8 45.8 35.2 35.2 37.7 34.7 25 100 ± 12 100 ± 10
25 10.3 dB/100m 44.3 44.3 34.1 34.1 35.8 32.8 24.3 100 ± 15 100 ± 10
31.25 11.6 dB/100m 42.9 42.9 31.3 31.3 33.9 30.9 23.6 100 ± 15 100 ± 10
62.5 16.8 dB/100m 38.4 38.4 21.6 21.6 27.8 24.8 21.5 100 ± 15 100 ± 10
100 21.7 dB/100m 35.3 35.3 17.1 17.1 23.8 20.8 20.1 100 ± 15
155 27.7 dB/100m 32.5 32.5 4.7 4.7 19.9 16.9 19 100 ± 18
200 32 dB/100m 30.8 30.8 3 3 17.7 14.7 19 100 ± 20
250 36.4 dB/100m 29.3 29.3 0 0 15.8 12.8 18 100 ± 20
300 40.5 dB/100m 28.2 28.2 0 0 14.2 11.2 18 100 ± 20
310 41.3 dB/100m 27.9 27.9 13.9 10.9 18 100 ± 20
350 44.3 dB/100m 27.2 27.2 12.9 9.9 17 100 ± 22
Voltage
UL Voltage Rating Voltage Rating
300 V (CM) 300 V (CMG-HL)

Mechanical Characteristics

Temperature
UL Temperature Operating Installation Storage
60°C -40°C To +75°C -25°C To +75°C -25°C To +85°C
Bend Radius
Stationary Min.
6.5 in (170 mm)
Max. Pull Tension: 40 lbs (18 kg)
Bulk Cable Weight: 123 lbs/1000ft

Standards and Compliance

Environmental Suitability: Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance, Oil Resistance, Aerial – When supported by messenger wire
Flammability / Reaction to Fire: UL 1685 (UL Loading), FT4
NEC / UL Compliance: Article 800, CM
CEC / C(UL) Compliance: CMG, HL
IEEE Compliance: IEEE 802.3bt Type 1, Type 2, Type 3
Data Category: Category 5e
European Directive Compliance: EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2020-01-16
APAC Compliance: China RoHS II (GB/T 26572-2011)

Product Notes

Notes: US Patent #’s 5606151; 5734126 Operating temperatures are subject to length de-rating. Cable passes -40C Cold Bend per UL 1581.

History

Update and Revision: Revision Number: 0.570 Revision Date: 12-12-2023

Part Numbers

Variants
Item # Color Putup Type Length UPC Footnote
121700A 0101000 Black Reel 1,000 ft 612825108962 C Z
121700A 0103000 Black Reel 3,000 ft 612825399728 C Z
121700A 0105000 Black Reel 5,000 ft 612825108979 C Z
121700A 0081000 Gray Reel 1,000 ft 612825108955 C Z
