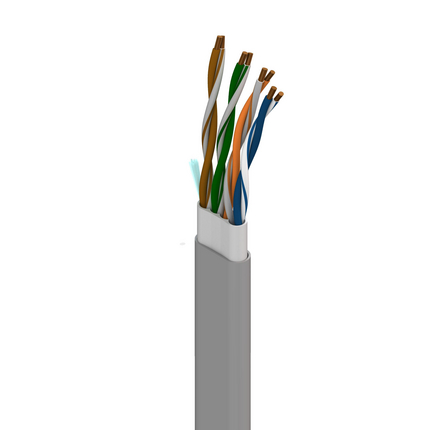

11872A - DataTuff® 6, 4 Bonded-Pr #24 Sol BC, PO Ins, PVC Jkt, PVC Jkt, CMR

11872A – DataTuff® 6, 4 Bonded-Pr #24 Sol BC, PO Ins, PVC Jkt, PVC Jkt, CMR

Call for Price

Compare
SKU: 11872A Categories: , , ,

Description

Product Overview

Suitable Applications: harsh environment, IIoT, factory or process automation, IP cameras and devices, data communication, etc.

Physical Characteristics (Overall)

Conductor
Element AWG Stranding Material Nominal Diameter No. of Pairs
Pair(s) 23 Solid BC – Bare Copper 0.022 in 4
Conductor Count: 8
Total Number of Pairs: 4
Insulation
Element Material Nominal Diameter Nominal Wall Thickness
Pair(s) PO – Polyolefin 0.043 in 0.01 in
Bonded-Pair: Yes
Color Chart
Number Color
1 Blue & White/Blue
2 Orange & White/Orange
3 Green & White/Green
4 Brown & White/Brown
Inner Jacket
Material Nominal Diameter Ripcord
PVC – Polyvinyl Chloride 0.365 x 0.165 in Yes
Outer Jacket
Material Nominal Diameter Nominal Wall Thickness Ripcord
PVC – Polyvinyl Chloride 0.475 x 0.265 in 0.035 in Yes

Electrical Characteristics

Conductor DCR
Max. Conductor DCR Max. DCR Unbalance
23.2 Ohm/1000ft 3 %
Capacitance
Max. Capacitance Unbalance Nom.Mutual Capacitance
49.2 pF/ft 15 pF/ft
Delay
Max. Delay Max. Delay Skew Nominal Velocity of Propagation (VP) [%]
510 ns/100m 25 ns/100m 70%
High Frequency
Frequency [MHz] Max. Insertion Loss (Attenuation) Min. NEXT [dB] Min. PSNEXT [dB] Min. ACR [dB] Min. PSACR [dB] Min. ACRF (ELFEXT) [dB] Min. PSACRF (PSELFEXT) [dB] Min. RL (Return Loss) [dB] Max./Min. Input Impedance (unFitted) Max./Min. Fitted Impedance
1 MHz 1.9 dB/100m 74.3 dB 72.3 dB 72.4 dB 70.4 dB 67.8 dB 64.8 dB 20 dB 100 ± 12 Ohm 100 ± 15 Ohm
4 MHz 3.7 dB/100m 65.3 dB 63.3 dB 61.6 dB 59.6 dB 55.7 dB 52.7 dB 23 dB 100 ± 12 Ohm 100 ± 15
8 MHz 5.3 dB/100m 60.3 dB 58.8 dB 55.5 dB 53.5 dB 49.7 dB 46.7 dB 24.5 dB 100 ± 12 Ohm 100 ± 15
10 MHz 5.9 dB/100m 59.3 dB 57.3 dB 53.4 dB 51.4 dB 47.8 dB 44.8 dB 25 dB 100 ± 12 Ohm 100 ± 15
16 MHz 7.5 dB/100m 56.3 dB 54.3 dB 48.7 dB 46.7 dB 43.7 dB 40.7 dB 25 dB 100 ± 12 Ohm 100 ± 8
20 MHz 8.4 dB/100m 54.8 dB 52.8 dB 46.4 dB 44.4 dB 41.7 dB 38.7 dB 25 dB 100 ± 12 Ohm 100 ± 8
25 MHz 9.5 dB/100m 53.4 dB 51.4 dB 43.9 dB 41.9 dB 39.8 dB 36.8 dB 24.3 dB 100 ± 15 Ohm 100 ± 8
31.25 MHz 10.6 dB/100m 51.9 dB 49.9 dB 41.2 dB 39.2 dB 37.9 dB 34.9 dB 23.6 dB 100 ± 15 Ohm 100 ± 8
62.5 MHz 15.4 dB/100m 47.4 dB 45.4 dB 32 dB 30 dB 31.8 dB 28.8 dB 21.5 dB 100 ± 15 Ohm 100 ± 8
100 MHz 19.8 dB/100m 44.3 dB 42.3 dB 24.5 dB 22.5 dB 27.8 dB 24.8 dB 21 dB 100 ± 15 Ohm
155 MHz 25.1 dB/100m 41.5 dB 39.5 dB 16.3 dB 14.3 dB 23.9 dB 20.9 dB 21 dB 100 ± 15 Ohm
200 MHz 29 dB/100m 39.9 dB 37.9 dB 10.8 dB 10 dB 21.7 dB 18.7 dB 21 dB 100 ± 15 Ohm
250 MHz 32.8 dB/100m 38.3 dB 36.3 dB 5.5 dB 3.5 dB 19.8 dB 16.8 dB 18 dB 100 ± 20 Ohm
300 MHz 35.2 dB/100m 37.2 dB 34.2 dB 0.7 dB 0 dB 18.2 dB 15.2 dB 18 dB 100 ± 20 Ohm
310 MHz 37.1 dB/100m 36.9 dB 34.9 dB 0 dB 17.9 dB 14.9 dB 18 dB 100 ± 20 Ohm
350 MHz 39.8 dB/100m 36.2 dB 34.2 dB 16.9 dB 13.9 dB 17 dB 100 ± 22 Ohm
400 MHz 43 dB/100m 35.3 dB 33.3 dB 15.7 dB 12.7 dB 14 dB 100 ± 32 Ohm
500 MHz 49 dB/100m 33.8 dB 31.8 dB 13.8 dB 10.8 dB 14 dB 100 ± 32 Ohm
Voltage
UL Voltage Rating
300 V RMS

Temperature Range

Installation Temperature Range: -10°C To +75°C
UL Temp Rating: 75°C
Operating Temperature Range: -25°C To +75°C

Mechanical Characteristics

Bulk Cable Weight: 59 lbs/1000ft
Max. Pull Tension: 50 lbs
Min. Bend Radius During Installation: 4.75 in
Min. Bend Radius/Minor Axis: 0.1 in

Standards

NEC Articles: Article 800
NEC/(UL) Compliance: CMR
CEC/C(UL) Compliance: CMR
ISO/IEC Compliance: ISO/IEC 11801 Cat 6
CPR Euroclass: Eca
Data Category: Category 6
TIA/EIA Compliance: TIA/EIA-568B.2 Cat 6

Applicable Environmental and Other Programs

Environmental Space: Indoor – Riser
EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/11/EC (BFR): Yes
EU Directive 2011/65/EU (RoHS 2): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive 2015/863/EU (RoHS 2 amendment): Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
MII Order #39 (China RoHS): Yes

Suitability

Suitability – Indoor: Yes

Flammability, LS0H, Toxicity Testing

CSA/C(UL) Flammability: FT4
UL Flammability: UL1666 Riser
IEC Flammability: IEC 60332-1-2
UL voltage rating: 300 V RMS

Plenum/Non-Plenum

Plenum (Y/N): No

Related Part Numbers

Variants
Item # Color Put-Up Type Length UPC
11872A 0101000 Black Reel 1,000 ft 612825107989
11872A 0081000 Gray Reel 1,000 ft 612825107972
Footnote: C – CRATE REEL PUT-UP.

Product Notes

Notes: US Patent #’s 5, 606, 151; 5, 734, 126; 5, 821, 467 **Values above 350 MHz are information only

History

Update and Revision: Revision Number: 0.558 Revision Date: 10-04-2023
