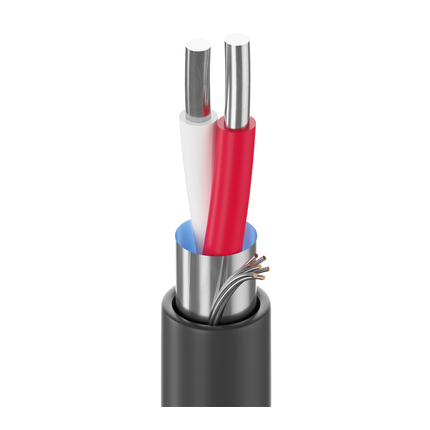

1115A - Type JX Thermocouple, 1 Pr #16 Sol, FEP Ins Wht, Red, OS, Blk FEP Jkt, 300V PLTC CL2P 200C SUN RES

1115A – Type JX Thermocouple, 1 Pr #16 Sol, FEP Ins Wht, Red, OS, Blk FEP Jkt, 300V PLTC CL2P 200C SUN RES

Call for Price

Compare
SKU: 1115A Categories: , , , ,

Description

Product Overview

Suitable Applications: Industrial Control, Raceways Cable trays and ducts, Digital Control, Instruments (4-20ma, 0-10v, …),low voltage digital control (24v, …),Thermocouple, distributed control system (DCS),programmable logic controller (PLC)

Construction Details

Conductor
Element No. of Elements Size Stranding Material
Pair(s) 1 16 AWG Solid Iron & Constantan
Insulation
Element Material Nom. Thickness Color Code
Pair(s) FEP – Fluorinated Ethylene Propylene 0.010 in (0.25 mm) White & Red
Outer Shield
Shield Type Material Coverage Drainwire Type
Tape Bi-Laminate (Alum+Poly) 100% 18 AWG (7×26) TC
Outer Jacket
Material Nom. Thickness Nom. Diameter
FEP – Fluorinated Ethylene Propylene 0.012 in (0.30 mm) 0.170 in (4.32 mm)
Overall Cable Diameter (Nominal): 0.170 in (4.32 mm)

Electrical Characteristics

Electricals
Element
Pair(s)
Table Notes: Conductor DCR (Nom): 24 Ohm/1000ft (Iron), 121 Ohm/1000ft (Constantan)
Voltage
UL Voltage Rating
300 V (PLTC), 300 V (CL3P)

Mechanical Characteristics

Temperature
UL Temperature Operating
200°C -70°C to +200°C
Bend Radius
Stationary Min. Installation Min.
1.7 in (43 mm) 1.7 in (43 mm)
Max. Pull Tension: 83 lbs (38 kg)
Bulk Cable Weight: 30 lbs/1000ft

Standards and Compliance

Environmental Suitability: Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance
Flammability / Reaction to Fire: NFPA 262, UL 910 (Plenum), T-29-520
NEC / UL Compliance: Article 725, CL3P, PLTC
European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance: China RoHS II (GB/T 26572-2011)
Other Standard Compliance(s): ISA MC 96.1-1982 Type JX

Product Notes

Notes: Constantan is a Hoskins Manufacturing Company trademark.

History

Update and Revision: Revision Number: 0.568 Revision Date: 02-15-2024

Part Numbers

Variants
Item # Color Putup Type Length UPC Footnote
1115A 0105000 Black Reel 5,000 ft 612825107057 C Z
