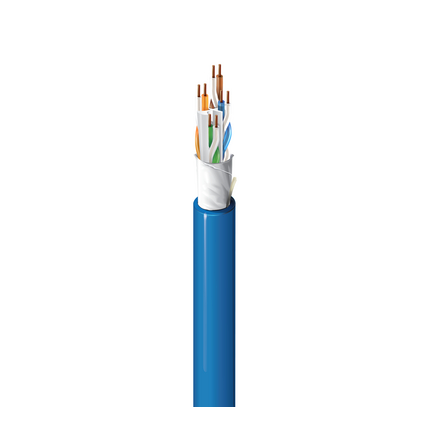

10GXS12 - 10GXS Category 6A Enhanced Cable, 4 Pair, U/UTP, CMR

10GXS12 – 10GXS Category 6A Enhanced Cable, 4 Pair, U/UTP, CMR

Call for Price

Compare
SKU: 10GXS12 Categories: , , ,

Description

Product Overview

Suitable Applications: Premise Horizontal Cable, Ethernet up to 10GBASE-T, Wi-Fi 6, Wi-Fi 5, PoE++, PoE+, PoE, Noisy Environments, Data Center EoR and MoR, Network Backbone, HDBaseT, HDBaseT 4K UHD
Patent: This product has one or more applicable patents. More information on patents can be found at https://www.belden.com/patents.

Construction Details

Conductor
Size Stranding Material No. of Pairs
23 AWG Solid BC – Bare Copper 4
Insulation
Material Color Code
PO – Polyolefin White & Blue, White & Orange, White & Green, White & Brown
Outer Jacket
Separator Material Nom. Diameter Ripcord
Center Member (Patented EquiSpline®), EquiBlock™ Barrier Technology PVC – Polyvinyl Chloride 0.275 in (6.99 mm) Yes
Overall Cable Diameter (Nominal): 0.275 in (6.99 mm)

Electrical Characteristics

Electricals
Max. Conductor DCR Max. Capacitance Unbalance
82 Ohm/km (25 Ohm/1000ft) 45 pF/100m
Delay
Frequency Max. Delay Max. Delay Skew Nom. Velocity of Prop. Typical Delay Skew
100 MHz 537.6 ns/100m 45 ns/100m 65% 30 ns/100m
High Frequency
Frequency [MHz] Max. Insertion Loss (Attenuation) Min. PSNEXT [dB] Min. PSACR [dB] Min. PSACRF (PSELFEXT) [dB] Min. RL (Return Loss) [dB] Max./Min. Input Impedance (unFitted) [Ohm] Max./Min. Fitted Impedance [Ohm] Min. PSANEXT [dB] Min. PSAACRF [dB] Min. TCL [dB] Min. ELTCTL [dB]
1 2.1 dB/100m 75.3 73.2 74.8 20.0 100 ± 15 105 ± 10 75.0 77.0 40.0 35.0
4 3.8 dB/100m 66.3 62.5 62.8 23.0 100 ± 15 100 ± 15 75.0 76.2 40.0 23.0
8 5.3 dB/100m 61.8 56.5 56.7 24.5 100 ± 15 100 ± 15 75.0 70.1 40.0 16.9
10 5.9 dB/100m 60.3 54.4 54.8 25.0 100 ± 15 100 ± 15 75.0 68.2 40.0 15.0
16 7.4 dB/100m 57.2 49.8 50.7 25.0 100 ± 15 100 ± 15 75.0 64.1 38.0 10.9
20 8.3 dB/100m 55.8 47.5 48.8 25.0 100 ± 15 100 ± 15 75.0 62.2 37.0 9.0
25 9.3 dB/100m 54.3 45.0 46.8 24.3 100 ± 15 100 ± 15 75.0 60.2 36.0 7.0
31.25 10.4 dB/100m 52.9 42.5 44.9 23.6 100 ± 15 100 ± 10 75.0 58.3 35.1 5.1
62.5 14.8 dB/100m 48.4 33.6 38.9 21.5 100 ± 15 100 ± 10 73.6 52.3 32.0
100 18.9 dB/100m 45.3 26.4 34.8 20.1 100 ± 15 100 ± 10 70.5 48.2 30.0
200 27.0 dB/100m 40.8 13.8 28.8 18.0 100 ± 22 100 ± 10 66.0 42.2 27.0
250 30.4 dB/100m 39.3 9.0 26.8 17.3 100 ± 32 100 ± 10 64.5 40.2 26.0
300 33.5 dB/100m 38.1 4.6 25.3 16.8 100 ± 32 100 ± 10 63.3 38.7 25.2
350 36.3 dB/100m 37.1 0.8 23.9 16.3 100 ± 32 100 ± 10 62.3 37.3 24.6
400 39.0 dB/100m 36.3 22.8 15.9 100 ± 32 100 ± 10 61.5 36.2 24.0
450 41.5 dB/100m 35.5 21.7 15.5 100 ± 32 100 ± 10 60.7 35.1 23.5
500 43.9 dB/100m 34.8 20.8 15.2 100 ± 32 100 ± 10 60.0 34.2 23.0
550 46.2 dB/100m 33.2 20.0 14.9 100 ± 32 100 ± 10 59.4 33.4
600 48.4 dB/100m 32.6 19.2 14.7 100 ± 32 100 ± 10 58.8 32.6
625 49.5 dB/100m 32.4 18.9 14.5 100 ± 32 100 ± 10 58.6 32.3
750 54.7 dB/100m 32.2 17.3 14.0 57.4 30.7
860 58.9 dB/100m 31.3 16.1 13.6 56.5 29.5
Voltage
UL Voltage Rating
300 V (CMR), 300 V (CL3R)

Mechanical Characteristics

Temperature
UL Temperature Operating Installation Storage
90°C -20°C To +75°C 0°C To +50°C -20°C To +75°C
Bend Radius
Stationary Min. Installation Min.
1.25 in (31.8 mm) 2.75 in (69.9 mm)
Max. Pull Tension: 25 lbs (11 kg)
Bulk Cable Weight: 35 lbs/1000ft

Standards and Compliance

Environmental Suitability: Riser, Indoor
Sustainability: Product Lens™, Environmental Product Declaration (EPD) Available
Flammability / Reaction to Fire: UL 1666 Riser, FT4, IEC 60332-1-2
CPR Compliance: CPR Euroclass: Eca; CPR UKCA Class: Eca
NEC / UL Compliance: Article 800, CMR, CMR-LP (0.6A), CL3R-LP (0.6A)
CEC / C(UL) Compliance: CMR
ICEA Compliance: S-116-732
IEEE Compliance: IEEE 802.3bt Type 1, Type 2, Type 3, Type 4
NEMA Compliance: ANSI/NEMA WC-66
Data Category: Category 6A
TIA/EIA Compliance: ANSI/TIA-568.2-D Category 6A
ISO/IEC Compliance: ISO/IEC 11801-1, IEC 61156-5
CENELEC Compliance: Segregation class according EN50174-2 = a
European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2020-01-16
UK Regulation Compliance: UKCA Mark
APAC Compliance: China RoHS II (GB/T 26572-2011)
Plenum Number: 10GXS13

Product Notes

Notes: Electrical values are expected performance based on cable testing and representative performance within a typical Belden system. Values above 625 MHz are for Engineering Information Only. Print Includes Descending Footage/Meter Markings from Max. Put-Up Length to 0.

History

Update and Revision: Revision Number: 0.362 Revision Date: 12-12-2023

Part Numbers

Variants
Item # Color Putup Type Length UPC
10GXS12 0101000 Black Reel 1,000 ft 612825004226
10GXS12010A1000 Black Reel-in-Box 1,000 ft 612825004318
10GXS12 0061000 Blue, Light Reel 1,000 ft 612825004189
10GXS12006A1000 Blue, Light Reel-in-Box 1,000 ft 612825004271
10GXS12 0081000 Gray Reel 1,000 ft 612825004202
10GXS12008A1000 Gray Reel-in-Box 1,000 ft 612825004295
10GXS12 0051000 Green Reel 1,000 ft 612825004172
10GXS12005A1000 Green Reel-in-Box 1,000 ft 612825004264
10GXS12 0031000 Orange Reel 1,000 ft 612825004158
10GXS12003A1000 Orange Reel-in-Box 1,000 ft 612825004240
10GXS12 0071000 Purple Reel 1,000 ft 612825004196
10GXS12007A1000 Purple Reel-in-Box 1,000 ft 612825004288
10GXS12 0021000 Red Reel 1,000 ft 612825004141
10GXS12002A1000 Red Reel-in-Box 1,000 ft 612825004233
10GXS12 0091000 White Reel 1,000 ft 612825004219
10GXS12009A1000 White Reel-in-Box 1,000 ft 612825004301
10GXS12 0041000 Yellow Reel 1,000 ft 612825004165
10GXS12004A1000 Yellow Reel-in-Box 1,000 ft 612825004257
