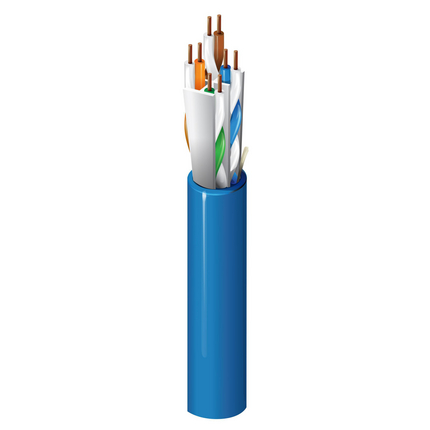

10GX13 - 10GX Category 6A Enhanced Cable, 4 Pair, U/UTP, CMP

10GX13 – 10GX Category 6A Enhanced Cable, 4 Pair, U/UTP, CMP

Call for Price

Compare
SKU: 10GX13 Categories: , , ,

Description

Product Overview

Suitable Applications: Premise Horizontal Cable, Ethernet up to 10GBASE-T, HDBaseT, PoE++, PoE+, PoE
Patent: This product has one or more applicable patents. More information on patents can be found at https://www.belden.com/patents.

Construction Details

Conductor
Size Stranding Material No. of Pairs
23 AWG Solid BC – Bare Copper 4
Insulation
Material Color Code
FEP – Fluorinated Ethylene Propylene White & Blue, White & Orange, White & Green, White & Brown
Outer Jacket
Separator Material Material Trade Name Nom. Diameter Ripcord
Double H Cross-Web (Patented RoundFlex®) PVC – Polyvinyl Chloride Flamarrest® 0.295 in (7.49 mm) Yes
Overall Cable Diameter (Nominal): 0.295 in (7.49 mm)

Electrical Characteristics

Electricals
Max. Conductor DCR Max. Capacitance Unbalance
74 Ohm/km (23 Ohm/1000ft) 50 pF/100m
Delay
Frequency Max. Delay Max. Delay Skew Nom. Velocity of Prop. Typical Delay Skew
100 MHz 537.6 ns/100m 45 ns/100m 68% 35 ns/100m
High Frequency
Frequency [MHz] Max. Insertion Loss (Attenuation) Min. PSNEXT [dB] Min. PSACR [dB] Min. PSACRF (PSELFEXT) [dB] Min. RL (Return Loss) [dB] Max./Min. Input Impedance (unFitted) [Ohm] Max./Min. Fitted Impedance [Ohm] Min. PSANEXT [dB] Min. PSAACRF [dB] Min. TCL [dB] Min. ELTCTL [dB]
1 2.1 dB/100m 73.3 71.2 68.8 20.0 100 ± 15 100 ± 15 67.0 67.0 40.0 35.0
4 3.8 dB/100m 64.3 60.5 56.8 23.0 100 ± 15 100 ± 10 67.0 67.0 40.0 23.0
8 5.3 dB/100m 59.8 54.4 50.7 24.5 100 ± 15 100 ± 10 67.0 61.1 40.0 16.9
10 5.9 dB/100m 58.3 52.4 48.8 25.0 100 ± 15 100 ± 10 67.0 59.2 40.0 15.0
16 7.5 dB/100m 55.2 47.8 44.7 25.0 100 ± 15 100 ± 10 67.0 55.1 40.0 10.9
20 8.4 dB/100m 53.8 45.4 42.8 25.0 100 ± 15 100 ± 10 67.0 53.2 38.0 9.0
25 9.4 dB/100m 52.3 43.0 40.8 24.3 100 ± 15 100 ± 10 67.0 51.2 36.0 7.0
31.25 10.5 dB/100m 50.9 40.4 38.9 23.6 100 ± 15 100 ± 10 67.0 49.3 35.1
62.5 15.0 dB/100m 46.4 31.4 32.9 21.5 100 ± 15 100 ± 10 66.6 43.3 32.0
100 19.1 dB/100m 43.3 24.2 28.8 20.1 100 ± 15 100 ± 10 63.5 39.2 30.0
200 27.6 dB/100m 38.8 11.2 22.8 18.0 100 ± 22 100 ± 10 59.0 33.2 27.0
250 31.1 dB/100m 37.3 6.3 20.8 17.3 100 ± 32 100 ± 10 57.5 31.2 26.0
300 34.3 dB/100m 36.1 1.9 19.3 16.8 100 ± 32 100 ± 10 56.3 29.7 25.2
350 37.2 dB/100m 35.1 17.9 16.3 100 ± 32 100 ± 10 55.3 28.3 24.6
400 40.1 dB/100m 34.3 16.8 15.9 100 ± 32 100 ± 10 54.5 27.2 24.0
450 42.7 dB/100m 35.5 15.7 15.5 100 ± 32 100 ± 10 53.7 26.1 23.5
500 45.3 dB/100m 32.8 14.8 15.2 100 ± 32 100 ± 10 53.0 25.2 23.0
550 47.7 dB/100m 32.2 14.0 14.9 100 ± 32 100 ± 10 52.4 24.4
600 50.1 dB/100m 31.6 13.2 14.7 100 ± 32 100 ± 10 51.8 23.6
625 51.2 dB/100m 31.4 12.9 14.5 100 ± 32 100 ± 10 51.6 23.3
750 56.7 dB/100m 30.2 11.3 14.0 50.4 21.7
860 61.2 dB/100m 29.3 10.1 13.6 49.5 20.5
Voltage
UL Voltage Rating
300 V (CMP), 300 V (CL3P)

Mechanical Characteristics

Temperature
UL Temperature Operating Installation Storage
105°C -20°C To +75°C 0°C To +50°C -20°C To +75°C
Bend Radius
Stationary Min. Installation Min.
1.25 in (31.8 mm) 3.0 in (76 mm)
Max. Pull Tension: 25 lbs (11 kg)
Bulk Cable Weight: 43 lbs/1000ft

Standards and Compliance

Environmental Suitability: Plenum, Indoor
Sustainability: Product Lens™, Environmental Product Declaration (EPD) Available
Flammability / Reaction to Fire: NFPA 262, UL 910 (Plenum), FT6, IEC 60332-1-2
CPR Compliance: CPR Euroclass: Eca; CPR UKCA Class: Eca
NEC / UL Compliance: Article 800, CMP, CMP-LP (0.6A), CL3P-LP (0.6A)
CEC / C(UL) Compliance: CMP
ICEA Compliance: S-116-732
IEEE Compliance: IEEE 802.3bt Type 1, Type 2, Type 3, Type 4
NEMA Compliance: ANSI/NEMA WC-66
Data Category: Category 6A
TIA/EIA Compliance: ANSI/TIA-568.2-D Category 6A
ISO/IEC Compliance: ISO/IEC 11801-1, IEC 61156-5
CENELEC Compliance: Segregation class according EN50174-2 = a
European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2020-01-16
UK Regulation Compliance: UKCA Mark
APAC Compliance: China RoHS II (GB/T 26572-2011)
Non-Plenum Number: 10GX12

Product Notes

Notes: Electrical values are expected performance based on cable testing and representative performance within a typical Belden system. Values above 625 MHz are for Engineering Information Only. 0.295″ Cable Dimension per TIA 6@1 Equivalent Diameter. Print Includes Descending Footage/Meter Markings from Max. Put-Up Length to 0.

History

Update and Revision: Revision Number: 0.573 Revision Date: 12-12-2023

Part Numbers

Variants
Item # Color Putup Type Length UPC
10GX13 0101000 Black Reel 1,000 ft 612825102274
10GX13 0101500 Black Reel 1,500 ft 612825102281
10GX13 D151000 Blue Reel 1,000 ft 612825102182
10GX13 D152500 Blue Reel 2,500 ft 612825102199
10GX13 0081000 Gray Reel 1,000 ft 612825102250
10GX13 0051000 Green Reel 1,000 ft 612825102236
10GX13 0071000 Purple Reel 1,000 ft 612825102243
10GX13 0091000 White Reel 1,000 ft 612825102267
10GX13 0041000 Yellow Reel 1,000 ft 612825102205
10GX13 0042500 Yellow Reel 2,500 ft 612825102212
10GX13 0045000 Yellow Reel 5,000 ft 612825102229
