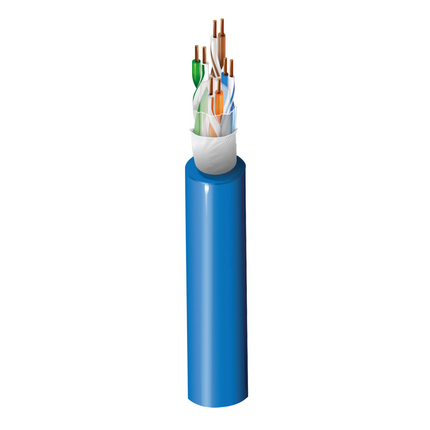

10GAB1 - CAT 6A 23AWG, U/UTP, LSZH Jkt, GB 31247 B1 Rating, Indoor

10GAB1 – CAT 6A 23AWG, U/UTP, LSZH Jkt, GB 31247 B1 Rating, Indoor

Call for Price

Compare
SKU: 10GAB1 Categories: , , ,

Description

Product Overview

Suitable Applications: Horizontal and building backbone Cable.
Support current and future category 6A and 6 applications: such as
10GBase-T (10 Gigabit Ethernet), 1000Base-T (Gigabit Ethernet),
100 Base-T, 10 Base-T, ISDN, ATM and PoE application
Patent: This product has one or more applicable patents. More information on patents can be found at https://www.belden.com/patents.

Construction Details

Conductor
Size Stranding Material No. of Pairs
23 Solid BC – Bare Copper 4
Insulation
Material Nom. Insulation Diameter Color Code
PE – Polyethylene 1.18 mm (0.0465 in) Blue & White, Orange & White with Orange Stripe, Green & White with Green Stripe, Brown & White with Brown Stripe
Outer Jacket
Separator Material Nom. Diameter
Barrier Tape LSZH – Low Smoke Zero Halogen (Flame Retardant) 7.5 mm (0.30 in)

Electrical Characteristics

Electricals
Max. Conductor DCR Max. Mutual Capacitance Max. Capacitance Unbalance
93.8 Ohm/km 56 pF/m (17 pF/ft) 330 pF/100m
Table Notes: Maximum operating voltage: 72 Vdc
Delay
Max. Delay Skew
45 ns/100m
High Frequency
Frequency [MHz] Max. Insertion Loss (Attenuation) [dB/100m] Min. NEXT [dB] Min. PSNEXT [dB] Min. ACRF (ELFEXT) [dB] Min. PSACRF (PSELFEXT) [dB] Min. RL (Return Loss) [dB] Min. PSANEXT [dB] Min. PSAACRF [dB] Min. TCL [dB] Min. ELTCTL [dB]
1 2.1 74.3 72.3 67.8 64.8 20.0 67.0 67.0 40.0 35.0
4 3.8 65.3 63.3 55.8 52.8 23.0 67.0 66.2 40.0 23.0
10 5.9 59.3 57.3 49.7 46.7 25.0 67.0 58.2 40.0 15.0
16 7.5 56.2 54.2 43.7 40.7 25.0 67.0 54.1 38.0 10.9
31.25 10.5 51.9 49.9 37.9 34.9 23.6 67.0 48.3 35.1
62.5 15.0 47.4 45.4 31.9 28.9 21.5 65.6 42.3 32.0
100 19.1 44.3 42.3 27.8 24.8 20.1 62.5 38.2 30.0
200 27.6 39.8 37.8 21.8 8.8 18.0 58.0 32.2 27.0
250 31.1 38.3 36.3 19.8 16.8 17.3 56.5 30.2 26.0
300 34.3 37.1 35.1 18.3 15.3 17.3 55.3 28.7 25.2
500 45.3 33.8 31.8 13.8 10.8 17.3 52.0 24.2 23.0
Table Notes: Horizontal Cable transmission characteristics

Mechanical Characteristics

Temperature
Operating Installation
-20°C To +60°C 0°C To +50°C
Bend Radius
Installation Min.
60 mm (2.4 in)
Max. Pull Tension: 80 N (18 lbf)
Bulk Cable Weight: 62 kg/km (42 lbs/1000ft)

Standards and Compliance

Environmental Suitability: Indoor, Non-Halogenated
GB Compliance: GB 31247
IEEE Compliance: IEEE 802.3bt Type 1, Type 2, Type 3, Type 4
Data Category: Category 6A
TIA/EIA Compliance: TIA 568.2-D
ISO/IEC Compliance: IEC 61156-5(2009), ISO/IEC 11801(2017), IEC 61034-2 – Smoke Density Min Transmittance = 60%
European Halogen Free Standards: IEC 60754-2 – Halogen Acid Gas Amount – Max. Conductivity = 2.5 µS/mm, IEC 60754-2 – Halogen Acid Gas Amount – Min. pH = 4.3
European Directive Compliance: EU Directive 2011/65/EU (RoHS 2)

Product Notes

Notes: According to GB 31247 Classification for burning behavior B1 – (d0, t0, a1), Hazard classification of material smoke toxicity – ZA2, Jacket sequentially marked

History

Update and Revision: Revision Number: 0.31 Revision Date: 12-12-2023

Part Numbers

Variants
Item # Color Length
10GAB1 010305M Black 305 m
10GAB1 006305M Blue 305 m
10GAB1 008305M Gray 305 m
10GAB1 009305M White 305 m
