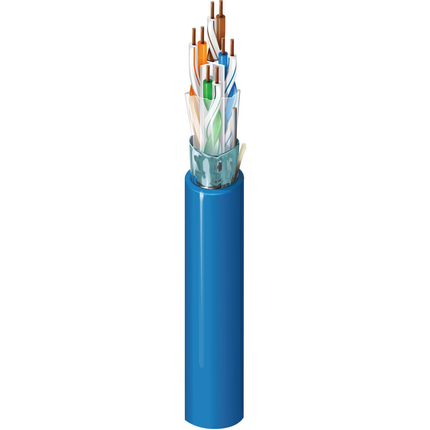

10GA25 - 10GA25 Cat 6A Cable, F/UTP, LSZH, 4 Pair, AWG 23, Indoor

10GA25 – 10GA25 Cat 6A Cable, F/UTP, LSZH, 4 Pair, AWG 23, Indoor

Call for Price

Compare
SKU: 10GA25 Categories: , , ,

Description

Product Overview

Suitable Applications: Horizontal and building backbone cable; Support current and future Cat. 6a and 6 applications such as; 10GBase-T (10 Gigabit Ethernet), 1000Base-T (Gigabit Ethernet), 100 Base-T, 10 Base-T, FDDI and ATM

Physical Characteristics (Overall)

Conductor
AWG Stranding Material
23 Solid BC – Bare Copper
Conductor Count: 8
Total Number of Pairs: 4
Insulation
Material Nominal Diameter
PE – Polyethylene 1.18 mm
Color Chart
Number Color
Pair 1 Blue & Blue / White
Pair 2 Orange & Orange / White
Pair 3 Green & Green / White
Pair 4 Brown & Brown / White
Cabling
Description Filler
4 pairs twisted together with central spline + overlapping polyester foil over cable core Central Spline
Outer Shield
Type Material Coverage [%] Drainwire Material Drainwire AWG
Tape Bi-Laminate (Alum+Poly) 100% TC – Tinned Copper 26
Outer Jacket
Material Nominal Diameter Diameter +/- Tolerance Ripcord
LSZH – Low Smoke Zero Halogen (Flame Retardant) 7.2 mm 0.3 mm Yes

Construction and Dimensions

Min Elongation at Breakof Conductors: 10 %
Min Elongation at Breakof Insulation: 100 %
Min Elongation at Breakof Jacket: 100 %
Min Tensile Strength of Jacket: 9 MPa

Electrical Characteristics

Conductor DCR
Max. Conductor DCR Max DCR Unbalanced Between Pairs [%] Max. DCR Unbalanced Within Pair [%]
95 Ohm/km 4 % 2 %
Capacitance
Max. Capacitance Unbalance Max. Mutual Capacitance
160 pF/100m 56 pF/m
Impedance
Nominal Characteristic Impedance
100 Ohm
Delay
Max. Delay Skew
45 ns/100m
High Frequency
Frequency [MHz] Max. Insertion Loss (Attenuation) Min. NEXT [dB] Min. PSNEXT [dB] Min. ACR [dB] Min. PSACR [dB] Min. ACRF (ELFEXT) [dB] Min. PSACRF (PSELFEXT) [dB] Min. RL (Return Loss) [dB] Min. PSANEXT Min. PSAACRF Min. TCL [dB] Min. ELTCTL [dB]
1 MHz 2.1 dB/100m 75.3 dB 72.3 dB 73.2 dB 70.2 dB 68 dB 65.0 dB 20 dB 67.0 dB 67.0 dB 40 dB 35 dB
4 MHz 3.8 dB/100m 66.3 dB 63.3 dB 62.5 dB 59.5 dB 56 dB 53.0 dB 23 dB 67.0 dB 66.2 dB 34 dB 23 dB
10 MHz 5.9 dB/100m 60.3 dB 57.3 dB 54.4 dB 51.4 dB 48 dB 45.0 dB 25 dB 67.0 dB 58.2 dB 30 dB 15 dB
16 MHz 7.5 dB/100m 57.2 dB 54.2 dB 49.8 dB 46.8 dB 43.9 dB 40.9 dB 25 dB 67.0 dB 54.1 dB 28 dB 10.9 dB
31.2 MHz 10.5 dB/100m 52.9 dB 49.9 dB 42.4 dB 39.4 dB 38.1 dB 35.1 dB 23.6 dB 67.0 dB 48.3 dB 25.1 dB 5.1 dB
62.5 MHz 15 dB/100m 48.4 dB 45.4 dB 33.4 dB 30.4 dB 32.1 dB 29.1 dB 21.5 dB 65.6 dB 42.3 dB 22 dB
100 MHz 19.1 dB/100m 45.3 dB 42.3 dB 26.2 dB 23.2 dB 28 dB 25.0 dB 20.1 dB 62.5 dB 38.2 dB 20 dB
125 MHz 21.5 dB/100m 43.8 dB 40.8 dB 22.3 dB 19.3 dB 26.1 dB 23.1 dB 19.4 dB 61.0 dB 36.3 dB 19 dB
200 MHz 27.6 dB/100m 40.8 dB 37.8 dB 13.2 dB 10.2 dB 22 dB 19.0 dB 18 dB 58.0 dB 32.2 dB 17 dB
250 MHz 31.1 dB/100m 39.3 dB 36.3 dB 8.3 dB 5.3 dB 20 dB 17.0 dB 17.3 dB 56.5 dB 30.2 dB 16 dB
300 MHz 34.3 dB/100m 38.1 dB 35.1 dB 3.9 dB 0.9 dB 18.5 dB 15.5 dB 17.3 dB 55.3 dB 28.7 dB
500 MHz 45.3 dB/100m 34.8 dB 31.8 dB -10.4 dB -13.4 dB 14 dB 11.0 dB 17.3 dB 52.0 dB 24.2 dB
Table Notes: Limits below 4MHz are for information only.
Coupling Attenuation Class: Type II
Segregation class according EN50174-2: c
Voltage
Voltage Rating [V]
Max. 72 V DC

Temperature Range

Installation Temperature Range: 0°C To +50°C
Storage Temperature Range: -20°C To 60°C
Operating Temperature Range: -20°C To 60°C

Mechanical Characteristics

Bulk Cable Weight: 52 kg/km
Max. Pull Tension: 110 N

Standards

ISO/IEC Compliance: IEC 61156-5(2009), ISO/IEC 11801(2017)
Data Category: Category 6A
ANSI Compliance: ANSI/TIA 568.2-D (2018)
IEEE Compliance: PoE: IEEE 802.3bt Type 1, Type 2, Type 3, Type 4

Applicable Environmental and Other Programs

Environmental Space: Indoor

Suitability

Suitability – Indoor: Yes

Flammability, LS0H, Toxicity Testing

IEC Flammability: IEC 60332-1-2
IEC 60754-1 – Halogen Amount: Zero
IEC 60754-2 – Halogen Acid Gas Amount – Max. Conductivity: 10 µS/mm
IEC 60754-2 – Halogen Acid Gas Amount – Min. pH: 4.3
IEC 61034-2 – Smoke Density Min. Transmittance: 60%

Related Part Numbers

Variants
Item # Color Length
10GA25 006305M Blue 305 m
10GA25 006500M Blue 500 m
10GA25 008305M Grey 305 m
10GA25 008500M Grey 500 m
Footnote: *Ordering stock code will be created at the time of placing the order and the stock code will include cable part code, outer jacket color & putup length.

Product Notes

Notes: Electrical values are expected performance based on cable testing and representative performance within a typical Belden system.

History

Update and Revision: Revision Number: 0.81 Revision Date: 12-12-2023
