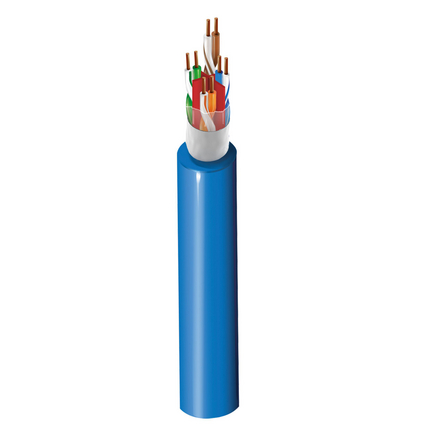

10GA24 - CAT 6A 4P 23AWG, U/UTP, LSZH Jkt, Indoor

10GA24 – CAT 6A 4P 23AWG, U/UTP, LSZH Jkt, Indoor

Call for Price

Compare
SKU: 10GA24 Categories: , , ,

Description

Product Overview

Suitable Applications: Horizontal and building backbone cable; Support current and future Category 6a and 6 applications, such as: 10GBase-T (10 Gigabit Ethernet), 1000Base-T (Gigabit Ethernet), 100 Base-T, 10 Base-T, FDDI, ATM as well as PoE application etc.
Patent: This product has one or more applicable patents. More information on patents can be found at https://www.belden.com/patents.

Construction Details

Conductor
Size Stranding Material No. of Pairs
23 Solid BC – Bare Copper 4
Insulation
Material Nom. Insulation Diameter Color Code
PE – Polyethylene 1.14 mm (0.0449 in) White & Blue, Orange & White with Orange Stripe, Green & White with Green Stripe, Brown & White with Brown Stripe
Outer Jacket
Material Nom. Diameter Ripcord
LSZH – Low Smoke Zero Halogen (Flame Retardant) 7.2 mm (0.28 in) No
Table Notes: A Separator tape “EquiBlockTM Barrier Technology” wrapped below outer jacket

Electrical Characteristics

Electricals
Max. Conductor DCR Max. Mutual Capacitance Max. Capacitance Unbalance Nom. Characteristic Impedance
80.0 Ohm/km (24.4 Ohm/1000ft) 56 pF/m (17 pF/ft) 160 pF/100m 100 Ohm
Delay
Frequency Max. Delay Max. Delay Skew Nom. Velocity of Prop.
100 MHz 538 ns/100m 45 ns/100m 67%
High Frequency
Frequency [MHz] Max. Insertion Loss (Attenuation) [dB/100m] Min. NEXT [dB] Min. PSNEXT [dB] Min. ACR [dB] Min. PSACR [dB] Min. ACRF (ELFEXT) [dB] Min. PSACRF (PSELFEXT) [dB] Min. RL (Return Loss) [dB] Min. PSANEXT [dB] Min. PSAACRF [dB] Min. TCL [dB] Min. ELTCTL [dB]
1 2.1 75.3 72.3 73.2 71.2 68.0 65.0 20.0 67.0 67.0 40.0 35.0
4 3.8 66.3 63.3 62.5 59.5 56.0 53.0 23.0 67.0 66.2 40.0 23.0
8 5.3 61.8 57.3 56.5 55.5 49.7 46.7 24.5 67.0 58.2 40.0 16.9
16 7.5 57.2 54.2 49.6 46.6 43.9 40.9 25.0 67.0 54.1 38.0 10.9
31.25 10.5 52.9 49.9 42.4 39.4 38.1 35.1 23.6 67.0 48.3 35.1
62.5 15.0 48.4 45.4 33.4 30.4 31.9 28.9 21.5 65.6 42.3 32.0
100 19.1 45.3 42.3 26.2 23.2 28.0 25.0 20.1 62.5 38.2 30.0
125 21.5 43.8 40.8 22.3 19.3 26.1 23.1 19.4 61.0 36.3 29.0
200 27.6 40.8 37.8 13.2 10.2 22.0 19.0 18.0 58.0 32.2 27.0
250 31.1 39.3 36.3 8.2 5.2 19.8 16.8 17.3 56.5 30.2 26.0
300 34.3 38.1 35.1 3.8 0.8 18.5 15.5 17.3 55.3 28.7 25.2
500 45.3 34.8 31.8 14.0 11.0 17.3 52.0 24.2 23.0
600 50.1 33.6 30.6 12.4 9.4 17.3 50.8 22.6
650 52.3 33.1 30.1 11.7 8.7 17.3 50.3 21.9
Table Notes: Jacket sequentially marked. Limits for 1MHz ,600MHz, 650MHz are for information only.

Mechanical Characteristics

Temperature
Operating Installation
-20°C to +60°C 0°C to +50°C
Bend Radius
Installation Min.
50 mm (2.0 in)
Max. Pull Tension: 110 N (25 lbf)
Bulk Cable Weight: 52 kg/km (35 lbs/1000ft)

Standards and Compliance

Environmental Suitability: Indoor, Indoor, Non-Halogenated
Flammability / Reaction to Fire: IEC 60332-1-2
IEEE Compliance: PoE: IEEE 802.3bt Type 1, Type 2, Type 3, Type 4
Data Category: Category 6A
TIA/EIA Compliance: ANSI/TIA 568.2-D
ISO/IEC Compliance: ISO/IEC 11801-1, IEC 61156-5
European Halogen Free Standards: IEC 60754-2 – Halogen Acid Gas Amount – Max. Conductivity = 10 µS/mm, IEC 60754-2 – Halogen Acid Gas Amount – Min. pH = 4.3

Product Notes

Notes: Cold bend test: -30? x 4 Hrs, No Crack

History

Update and Revision: Revision Number: 0.64 Revision Date: 01-29-2024

Part Numbers

Variants
Item # Color Length
10GA24 010305M Black 305 m
10GA24 006305M Blue 305 m
10GA24 008305M Gray 305 m
10GA24 005305M Green 305 m
10GA24 003305M Orange 305 m
10GA24 002305M Red 305 m
10GA24 009305M White 305 m
10GA24 004305M Yellow 305 m
