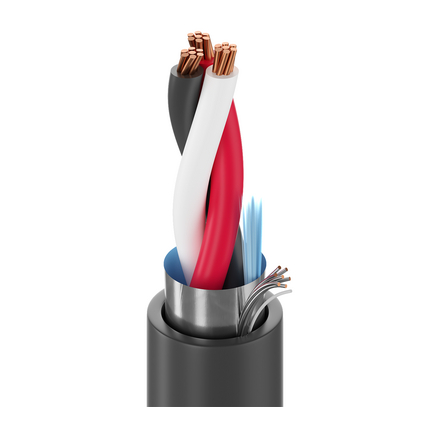

1036A - Inst, 1 Tri #18 Str BC, PVC Ins E1, OS, Blk PVC Jkt, 300V PLTC ITC CMG

1036A – Inst, 1 Tri #18 Str BC, PVC Ins E1, OS, Blk PVC Jkt, 300V PLTC ITC CMG

Call for Price

Compare
SKU: 1036A Categories: , , , ,

Description

Product Overview

Suitable Applications: Industrial Control, Raceways Cable trays and ducts, Digital Control, Instruments (4-20ma, 0-10v, …),low voltage digital control (24v, …),RTD, control circuits, distributed control system (DCS),programmable logic controller (PLC),  Solenoids, Valves, actuators, positioners

Construction Details

Conductor
Element No. of Elements Size Stranding Material
Triad(s) 1 18 AWG 7×26 BC – Bare Copper
Insulation
Element Material Nom. Thickness Nom. Insulation Diameter Color Code
Triad(s) PVC – Polyvinyl Chloride 0.019 in (0.48 mm) 0.083 in (2.1 mm) ICEA Chart E1
Outer Shield
Shield Type Material Coverage Drainwire Type
Tape Bi-Laminate (Alum+Poly) 100% 20 AWG (7×28) TC
Outer Jacket
Separator Material Nom. Thickness Nom. Diameter Ripcord
PP – Polypropylene Tape PVC – Polyvinyl Chloride 0.037 in (0.94 mm) 0.272 in (6.91 mm) Yes
Overall Cable Diameter (Nominal): 0.272 in (6.91 mm)

Electrical Characteristics

Electricals
Element Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Max. Current
Triad(s) 6.79 Ohm/1000ft 50 pF/ft (160 pF/m) 14 Amps per conductor @ 30°C
Voltage
UL Voltage Rating
300 V (PLTC, CMG, AWM 2464), 150 V (ITC)

Mechanical Characteristics

Temperature
UL Temperature Operating
105°C -30°C to +105°C
Bend Radius
Stationary Min. Installation Min.
3.2 in (81 mm) 3.2 in (81 mm)
Max. Pull Tension: 81 lbs (37 kg)
Bulk Cable Weight: 38 lbs/1000ft

Standards and Compliance

Environmental Suitability: Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance, Burial
Flammability / Reaction to Fire: UL 1685 FT4 Loading, FT4, IEEE 1202 FT4
NEC / UL Compliance: Article 725, Article 727, Article 800, CMG, ITC, PLTC
AWM Compliance: AWM 2464
CEC / C(UL) Compliance: CMG
European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance: China RoHS II (GB/T 26572-2011)

History

Update and Revision: Revision Number: 0.599 Revision Date: 01-04-2024

Part Numbers

Variants
Item # Color Putup Type Length UPC Footnote
1036A 0101000 Black Reel 1,000 ft 612825105152 C
1036A 0105000 Black Reel 1,000 ft 612825105176 C Z
1036A 01010000 Black Reel 10,000 ft 612825105169 C Z
1036A 0061000 Blue, Light Reel 1,000 ft 612825105121 C
1036A 0065000 Blue, Light Reel 5,000 ft 612825105145 C Z
1036A 00610000 Blue, Light Reel 10,000 ft 612825105138 C
