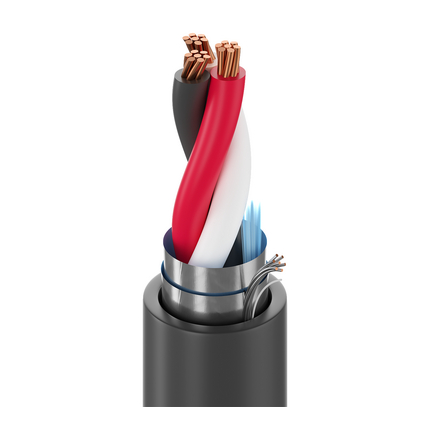

1035A - Inst, 1 Pr #16 Str BC, PVC Ins E1, Blk PVC Jkt, 300V PLTC ITC CMG

1035A – Inst, 1 Pr #16 Str BC, PVC Ins E1, Blk PVC Jkt, 300V PLTC ITC CMG

Call for Price

Compare
SKU: 1035A Categories: , , , ,

Description

Product Overview

Suitable Applications: Industrial Control, Raceways Cable trays and ducts, Digital Control, Instruments (4-20ma, 0-10v, …),low voltage digital control (24v, …), encoders, control circuits, distributed control system (DCS),programmable logic controller (PLC), Solenoids, Valves, Actuators, Positioners

Construction Details

Conductor
Element No. of Elements Size Stranding Material
Pair(s) 1 16 AWG 7×24 BC – Bare Copper
Insulation
Element Material Nom. Thickness Nom. Insulation Diameter Color Code
Pair(s) PVC – Polyvinyl Chloride 0.017 in (0.43 mm) 0.091 in (2.3 mm) ICEA Chart E1
Outer Jacket
Material Nom. Thickness Nom. Diameter Ripcord
PVC – Polyvinyl Chloride 0.037 in (0.94 mm) 0.256 in (6.50 mm) Yes
Overall Cable Diameter (Nominal): 0.256 in (6.50 mm)

Electrical Characteristics

Electricals
Element Nom. Conductor DCR Max. Current
Pair(s) 4.36 Ohm/1000ft 18 Amps per conductor @ 30°C
Voltage
UL Voltage Rating
300 V (CMG, CL3, PLTC, AWM 2464), 150 V (ITC)

Mechanical Characteristics

Temperature
UL Temperature Operating
105°C -30°C to +105°C
Bend Radius
Stationary Min. Installation Min.
2.6 in (66 mm) 2.6 in (66 mm)
Max. Pull Tension: 71 lbs (32 kg)
Bulk Cable Weight: 34 lbs/1000ft

Standards and Compliance

Environmental Suitability: Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance
Flammability / Reaction to Fire: UL 1685 FT4 Loading, FT4, IEEE 1202 FT4
CPR Compliance: CPR Euroclass: Eca
NEC / UL Compliance: Article 725, Article 727, Article 800, CMG, CL3, PLTC, ITC
AWM Compliance: AWM 2464
CEC / C(UL) Compliance: CMG
European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
UK Regulation Compliance: UKCA Mark
APAC Compliance: China RoHS II (GB/T 26572-2011)

History

Update and Revision: Revision Number: 0.589 Revision Date: 02-15-2024

Part Numbers

Variants
Item # Color Putup Type Length UPC Footnote
1035A 0101000 Black Reel 1,000 ft 612825105091 C
1035A 01010000 Black Reel 10,000 ft 612825105107 C Z
