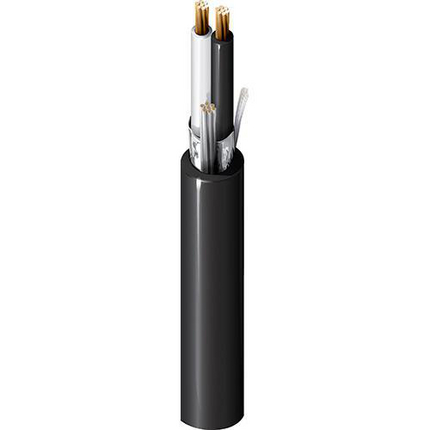

1030A - Inst, 1 Pr #16 Str BC, PVC Ins E1, OS, Blk PVC Jkt, 300V PLTC, ITC, CMG

1030A – Inst, 1 Pr #16 Str BC, PVC Ins E1, OS, Blk PVC Jkt, 300V PLTC, ITC, CMG

Call for Price

Compare
SKU: 1030A Categories: , , , ,

Description

Product Overview

Suitable Applications: Industrial Control, Raceways Cable trays and ducts, Digital Control, Instruments (4-20ma, 0-10v, …),low voltage digital control (24v, …), encoders, control circuits, distributed control system (DCS),programmable logic controller (PLC), Solenoids, Valves, Actuators, Positioners

Construction Details

Conductor
Element No. of Elements Size Stranding Material
Pair(s) 1 16 AWG 7×24 BC – Bare Copper
Insulation
Element Material Nom. Thickness Nom. Insulation Diameter Color Code
Pair(s) PVC – Polyvinyl Chloride 0.017 in (0.43 mm) 0.091 in (2.3 mm) ICEA Chart E1
Outer Shield
Shield Type Material Coverage Drainwire Type
Tape Bi-Laminate (Alum+Poly) 100% 18 AWG (7×26) TC
Outer Jacket
Material Nom. Thickness Nom. Diameter Ripcord
PVC – Polyvinyl Chloride 0.037 in (0.94 mm) 0.259 in (6.58 mm) Yes
Overall Cable Diameter (Nominal): 0.259 in (6.58 mm)

Electrical Characteristics

Electricals
Element Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Nom. Capacitance Cond-to-Other (Conds + Shield) Max. Current
Pair(s) 4.2 Ohm/1000ft 61 pF/ft (200 pF/m) 114 pF/ft (374 pF/m) 18 Amps per conductor @ 30°C
Voltage
UL Voltage Rating
300 V (PLTC, CMG, AWM 2464), 150 V (ITC)

Mechanical Characteristics

Temperature
UL Temperature Operating
105°C -30°C to +105°C
Bend Radius
Stationary Min. Installation Min.
3.1 in (79 mm) 3.1 in (79 mm)
Max. Pull Tension: 94 lbs (43 kg)
Bulk Cable Weight: 40 lbs/1000ft

Standards and Compliance

Environmental Suitability: Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance
Flammability / Reaction to Fire: UL 1685 FT4 Loading, FT4, IEEE 1202 FT4
NEC / UL Compliance: Article 725, Article 727, Article 800, CMG, ITC, PLTC
AWM Compliance: AWM 2464
CEC / C(UL) Compliance: CMG
European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance: China RoHS II (GB/T 26572-2011)

History

Update and Revision: Revision Number: 0.619 Revision Date: 02-15-2024

Part Numbers

Variants
Item # Color Putup Type Length UPC/EAN Footnote
1030A 01020000 Black 612825104773
1030A.00305 Black Reel 305 m 8719605000002
1030A 0101000 Black Reel 1,000 ft 612825104759 C
1030A 0105000 Black Reel 5,000 ft 612825104780 C Z
1030A 01010000 Black Reel 10,000 ft 612825104766 C Z
1030A 0061000 Blue, Light Reel 1,000 ft 612825104728 C
1030A 0065000 Blue, Light Reel 5,000 ft 612825104742
1030A 00610000 Blue, Light Reel 10,000 ft 612825104735 C
