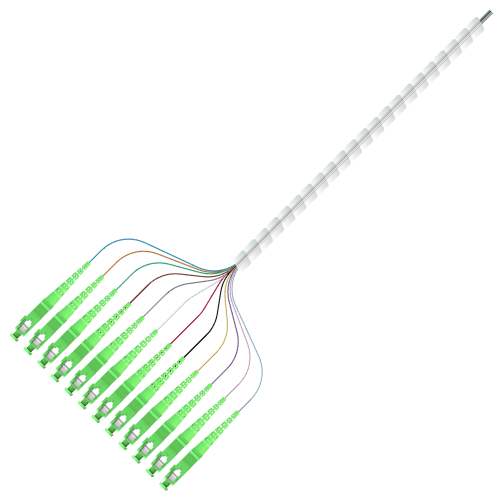

SC/APC Fiber Optic Pigtail – Pigtail, 12 Fiber, SC/APC, SM, 3meter Spiral Wrapped Pigtails (10-6418-ML) – Multilink

Description

General Specifications

Cable Assesmbly Type

12 Fiber Pigtail

Flame Rating

Riser Rated OFNR

Fiber Count

12

Outer Jacket Color

Natural

Application

Riser RatedGeneral Building ApplicationsIndoor HorizontalNominal Outer Diameter

6.35mm

Cable Length

3 MeterFiber Specifications

Cable Type

(12) Singlemode 900µm Simplex 9/125µm Tight Buffered Bend Insensitive G657 A1

Fiber Category

Singlemode (OS1)

Reflectance, Typical #1

< -65 dB Insertion Loss Typical 0.12 dBConnector Specifications Polish APC Connector Type SC/APC Ferrule Material Zirconia Housing Material Composite Housing Color Green Boot Color Green
