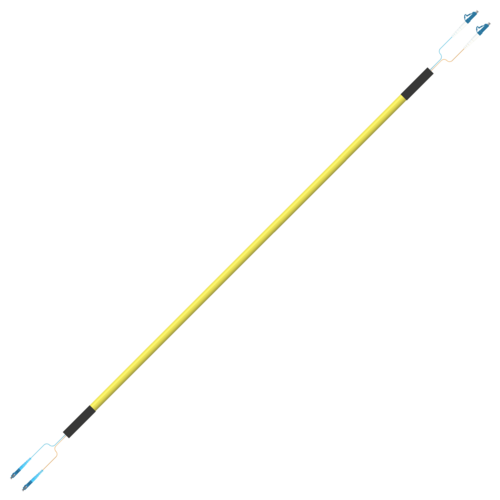

Fiber Optic Jumper – Jumper, Duplex, LC/UPC – SC/UPC, 3.0mm, 5meter Jumpers (10-6398-ML) – Multilink

Description

General Specifications

Polish #2

UPC

Application

Riser RatedGeneral Building ApplicationsIndoor HorizontalOuter Jacket Color

Yellow

Fiber Count

2

Cable Assesmbly Type

Duplex Fiber

Cable Length

5 Meter

Polish #1

UPC

Nominal Outer Diameter

3.6mm

Flame Rating

Riser Rated OFNRFiber Specifications

Cable Type

Singlemode 3.0mm Duplex Zipcord 9/125µm Tight Buffered Bend Insensitive G657 A1

Fiber Category

Singlemode (OS1)

Reflectance, Typical #2

< -58 dB Reflectance, Typical #1 < -58 dB Insertion Loss Typical 0.12 dBConnector Specifications Connector Type SC/UPCLC/UPCFerrule Material Zirconia Housing Material Composite Housing Color Blue Boot Color BlueWhite
