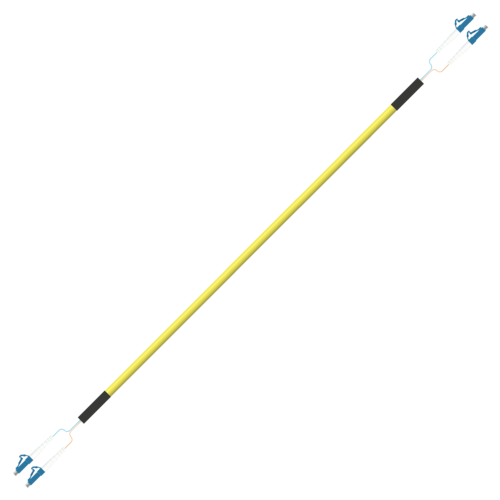

Fiber Optic Jumper – Jumper, Duplex, LC/UPC – LC/UPC, 3.0mm, 2meter Jumpers (10-6341-ML) – Multilink
Fiber Optic Jumper, 2 Fiber Duplex Zipcord LC/UPC to LC/UPC, Tight Buffered Cable, Riser Rated, 3.0mm, Singlemode 9/125um, Bend Insensitive
Call for Price
General Specifications
Cable Length
2 Meter
Polish #1
UPC
Nominal Outer Diameter
3.6mm
Flame Rating
Riser Rated OFNR
Polish #2
UPC
Application
Riser RatedGeneral Building ApplicationsIndoor HorizontalOuter Jacket Color
Yellow
Fiber Count
2
Cable Assesmbly Type
Duplex FiberFiber Specifications
Cable Type
Singlemode 3.0mm Duplex Zipcord 9/125µm Tight Buffered Bend Insensitive G657 A1
Reflectance, Typical #2
< -58 dB Fiber Category Singlemode (OS1) Reflectance, Typical #1 < -58 dB Insertion Loss Typical 0.12 dBConnector Specifications Connector Type LC/UPC Housing Color Blue Boot Color White Ferrule Material Zirconia Housing Material Composite
