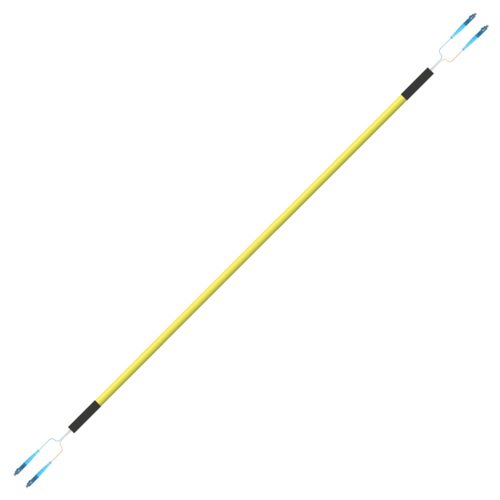

Fiber Optic Jumper – Jumper, Duplex, SC/UPC – SC/UPC, 3.0mm, 1meter Jumpers (10-6335-ML) – Multilink
Fiber Optic Jumper, 2 Fiber Duplex Zipcord, SC/UPC to SC/UPC, Tight Buffered Cable, Riser Rated, 3.0mm, Singlemode 9/125um, Bend Insensitive
Call for Price
General Specifications
Nominal Outer Diameter
3.6mm
Flame Rating
Riser Rated OFNR
Polish #1
UPC
Application
Riser RatedGeneral Building ApplicationsIndoor HorizontalOuter Jacket Color
Yellow
Polish #2
UPC
Cable Length
1 Meter
Fiber Count
2
Cable Assesmbly Type
Duplex FiberFiber Specifications
Reflectance, Typical #2
< -58 dB Fiber Category Singlemode (OS1) Cable Type Singlemode 3.0mm Duplex Zipcord 9/125µm Tight Buffered Bend Insensitive G657 A1 Reflectance, Typical #1 < -58 dB Insertion Loss Typical 0.12 dBConnector Specifications Connector Type SC/UPC Boot Color Blue Ferrule Material Zirconia Housing Material Composite Housing Color Blue
