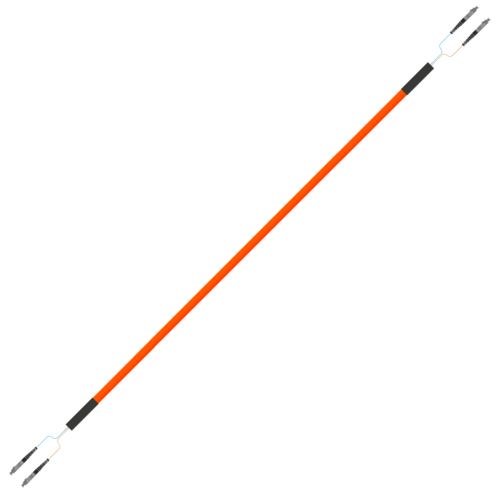

Fiber Optic Jumper – Jumper, Duplex, SC – SC, 3.0mm, 62.5, 10meter Jumpers (10-6287-ML) – Multilink

Description

General Specifications

Polish #2

UPC

Application

Riser RatedIndoor VerticalGeneral Building ApplicationsOuter Jacket Color

Orange

Fiber Count

2

Cable Assesmbly Type

Duplex Fiber

Cable Length

10 Meter

Polish #1

UPC

Nominal Outer Diameter

3.6mm

Flame Rating

Riser Rated OFNRFiber Specifications

Cable Type

Multimode 3.0mm Duplex Zipcord 62.5/125µm Tight Buffered Fiber OM1

Reflectance, Typical #2

< -45 dB Fiber Category Multimode (OM1) Reflectance, Typical #1 < -45 dB Insertion Loss Typical 0.20 dBConnector Specifications Connector Type SC/UPC Ferrule Material Zirconia Housing Material Composite Housing Color Beige Boot Color Black
