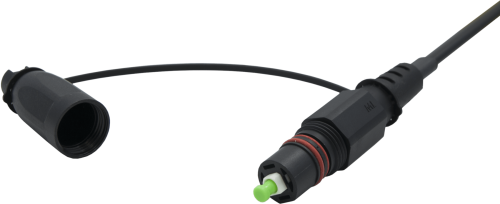

Surelight® H IP Factory Drop Cable

(Part Number: 066-824-30-ML) – Surelight® H IP Factory Drop Cable – 300 ft.

Call for Price

300 ft.

(SKU: 103-191021001) – MicroFlow drive wheel A 2.0 mm incl – o-ring – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$354.90

(SKU: 103-191021002) – MicroFlow drive wheel B 2.5 mm incl – o-ring – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$354.90

(SKU: 103-191021003) – MicroFlow drive wheel C 3.0 mm incl – o-ring – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$354.90

(SKU: 103-191021004) – MicroFlow drive wheel D 6.0 mm incl – o-ring – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$354.90

(SKU: 103-171114001) – MicroFlow sensor arm set 1.5 mm – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$321.10

(SKU: 103-171114002) – MicroFlow sensor arm set 2.0 mm – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$321.10

Description
Brand

Description

SPECS

General Specifications
Approvals and Listings	USDA Rural Development Programs
Fiber Count	1
Cable Length	300 Feet
Thermal Cycling	7 days/-40° C to 75° C

General Specifications
Cable Flexing	90° Flexing for 8 Cycles. 10 Lbf (Results: Max IL<0.5 dB, IL<0.3 dB, RL<5 dB)
Installation Temperature Range	– 30°C to 70°C (-22°F to 158°F)
Reflectance, Typical #1	< -65 dB
Thermal Aging	7 days/85° C
Max. Tensile Strength Short Term:	1350 N (300 Lbf)
Water Resistance	IP68
Environment	Outdoor
Humidity Aging	7 days/75° C/95% RH (Results: Max IL<0.5 dB, IL<0.3 dB, RL<5 dB)
Cable Torsion	10 Cycle of Torsion Loading
Tensile Strength Elements and/or Armoring – Layer 1	Dielectric Strength Members

Fiber Specifications
Fiber Category	Singlemode (OS2)
Cable Type	Flat Drop
Insertion Loss Typical	≤0.15 dB

Connector Specifications
Connector Type	SC/APC

Testing Specifications
Vibration Test	10 to 55Hz at the Rate of 45Hz/min. for 2 Hours
Impact Test	5-15 ft. Drop

Environmental Specifications
Storage Temperature Range	– 40°C to 70°C (-40°F to 158°F)
Operating Temperature	– 40° C to 70° C (-40° F to 158° F)

Brand

Multilink
