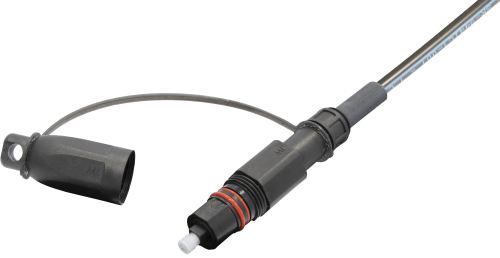

Surelight® H IP Compression Field Installable Connector – SC/APC Compression Seal, Round Drop Field Installables (066-458-65) – Multilink

General Specifications

Cable Torsion

10 Cycle of Torsion Loading

Max. Tensile Strength Short Term:

1350 N (300 Lbf)

Reflectance, Typical #1

< -65 dB Cable Flexing 90° Flexing for 8 Cycles. 10 Lbf (Results: Max IL<0.5 dB, IL<0.3 dB, RL<5 dB) Water Resistance IP68 Tensile Strength Elements and/or Armoring - Layer 1 Dielectric Strength Members Minimum Bend Radius 80mm (3.15 in) Environment Outdoor Installation Temperature Range - 30°C to 70°C (-22°F to 158°F) Product Type Field Installable Connector Thermal Aging 7 days/85° C Thermal Cycling 7 days/-40° C to 75° C Humidity Aging 7 days/75° C/95% RHFiber Specifications Fiber Category Singlemode (OS2) Cable Compatibility Round DropRoundInsertion Loss Typical .2-.45 db typical Reflectance, Typical #1 < -65 dBConnector Specifications Connector Type SC/APC Polish APCTesting Specifications Vibration Test 10 to 55Hz at the Rate of 45Hz/min. for 2 Hours Impact Test 5-15 ft. DropEnvironmental Specifications Storage Temperature Range -40°C to 70°C (-40°F to 158°F) Operating Temperature - 40° C to 70° C (-40° F to 158° F)
