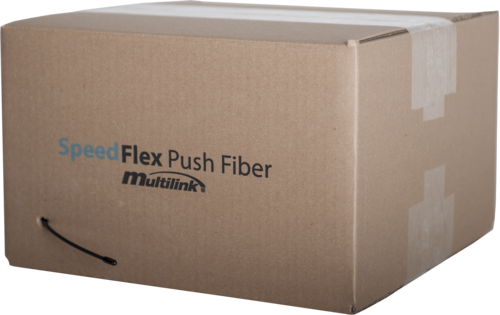

Bulk Fiber, 1 Fiber SpeedFlex™, Orange (Burial), 1000 Ft. Contractor Box SpeedFlex™ (066-160-32) – Multilink
Multilink’s SpeedFlex™ Push Fiber is a strong but flexible fiber cable designed to be installed in rigid yet adaptable conduit or to be stapled directly to the wall. With the ability to route 1 or 2 fibers, Multilink’s SpeedFlex Push Fiber is unique to the push/pull fiber industry. The 900µm bend-insensitive fiber is properly color coded to EIA/TIA standards. SpeedFlex™ comes in a 100 ft. payout box OR 1000 ft. contractor box and is pushable up to 1000 ft. SpeedFlex™ comes with printed measurements so you always know how much you have left and is available with a factory terminated connector upon request.
Download Spec Sheet
$290.40
General Specifications
Fiber Buffer Color
Blue
Jacket Bend Radius
30mm
Fiber Count
1
Bend Radius
10mm
Packaging/Length
1000 Ft. Contractor Box
Nominal Outer Diameter
3.0mm
Jacket Type
UV Stabilized Rigid PVC
Application
General Building ApplicationsIndoor Horizontal and VerticalProduct
Push Fiber
Jacket Rating
UL/CE Listed, UL94
Outer Jacket Color
OrangeGeneral Specifications
Environment
Burial
Installation Temperature Range
-30°C to 75°CFiber Specifications
Fiber Type
Singlemode 9/125um Tight Buffered Bend Insensitive G657D, G657 A1
Fiber Category
Singlemode (OS2)Environmental Specifications
Storage Temperature Range
-40°C to 70°C (-40°F to 158°F)
Operating Temperature
-40°C to +70°CSafety Standard Specifications
Safety Standard
GR-20 CompliantDesigned to GR-3155
