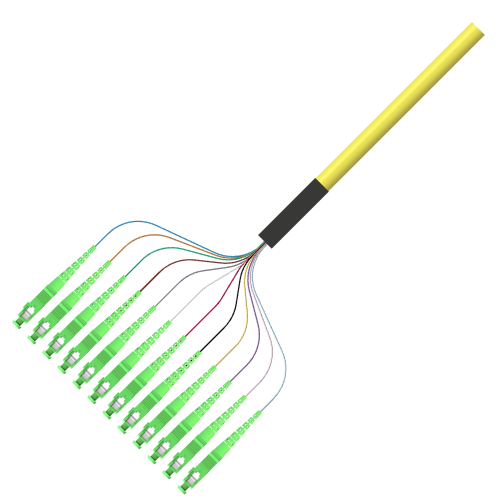

Fiber Optic Pigtail – Pigtail, 12 Fiber, SCAPC, SM, 3meter Ribbon (YELLOW) Pigtails (065-523-10-ML) – Multilink

Description

General Specifications

Application

Plenum RatedData CentersSANCentral OfficeWall OutletsCommunication ClosetsHead EndsOuter Jacket Color

Yellow

Cable Length

3 Meter

Flame Rating

Plenum Rated OFNP

Cable Assesmbly Type

12 Fiber Pigtail

Nominal Outer Diameter

4.6 X 2.2mm

Fiber Count

12Fiber Specifications

Cable Type

Singlemode 12 Fiber Ribbon 9/125µm Bend Insensitive G657 A1

Fiber Category

Singlemode (OS1)

Reflectance, Typical #1

< -65 dB Insertion Loss Typical 0.12 dBConnector Specifications Connector Type SC/APC Polish APC Housing Color Green Boot Color Green Ferrule Material Zirconia Housing Material Composite
