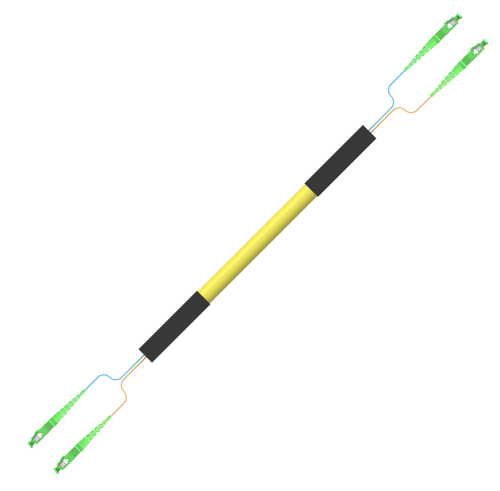

Fiber Optic Jumper – Jumper, Duplex, SC/APC – SC/APC. 3.0mm, 3meter Jumpers (065-489-10-ML) – Multilink

Description

General Specifications

Polish #2

APC

Cable Assesmbly Type

Duplex Fiber

Nominal Outer Diameter

3.6mm

Cable Length

3 Meter

Fiber Count

2

Application

Riser RatedGeneral Building ApplicationsIndoor HorizontalFlame Rating

Riser Rated OFNR

Polish #1

APC

Outer Jacket Color

YellowFiber Specifications

Cable Type

Singlemode 3.0mm Duplex Zipcord 9/125µm Tight Buffered Bend Insensitive G657 A1

Reflectance, Typical #2

< -65 dB Fiber Category Singlemode (OS1) Reflectance, Typical #1 < -65 dB Insertion Loss Typical 0.12 dBConnector Specifications Connector Type SC/APC Housing Color Green Boot Color Green Ferrule Material Zirconia Housing Material Composite
