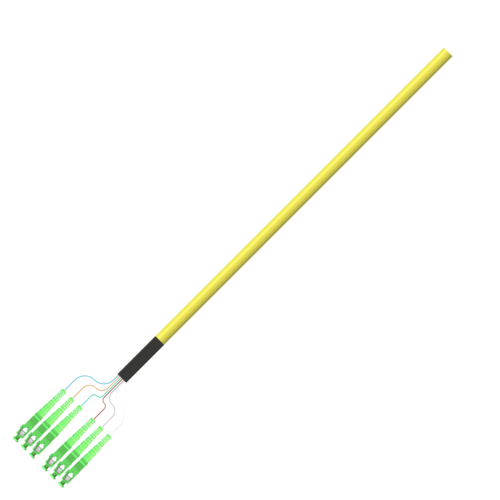

SC/APC Fiber Optic Pigtail – Pigtail, 6 Fiber, SC/APC, SM, 3meter OFNR (YELLOW) Pigtails (065-394-10-ML) – Multilink

Description

General Specifications

Nominal Outer Diameter

6.00mm

Flame Rating

Riser Rated OFNR

Outer Jacket Color

Yellow

Cable Assesmbly Type

6 Fiber Pigtail

Application

Riser RatedGeneral Building ApplicationsIndoor HorizontalFiber Count

6

Cable Length

3 MeterFiber Specifications

Cable Type

Singlemode 6 Fiber Distribution 9/125µm Tight Buffered Bend Insensitive G657 A1

Fiber Category

Singlemode (OS1)

Reflectance, Typical #1

< -65 dB Insertion Loss Typical 0.12 dBConnector Specifications Polish APC Connector Type SC/APC Ferrule Material Zirconia Housing Material Composite Housing Color Green Boot Color Green
