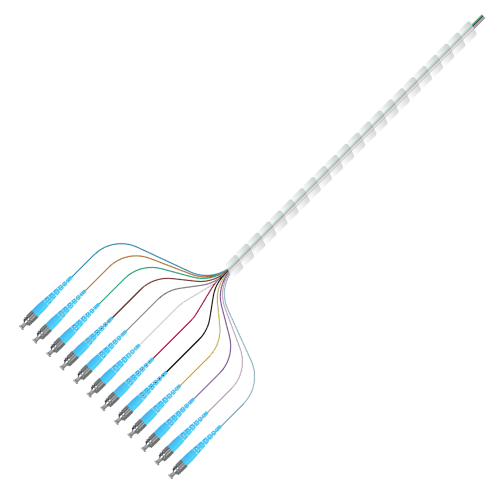

FC/UPC Fiber Optic Pigtail – Pigtail, 12 Fiber, FC/UPC, SM, 3meter Spiral Wrapped Pigtails (065-365-10-ML) – Multilink

Description

General Specifications

Flame Rating

Riser Rated OFNR

Fiber Count

12

Outer Jacket Color

Natural

Application

Riser RatedGeneral Building ApplicationsIndoor HorizontalNominal Outer Diameter

6.35mm

Cable Length

3 Meter

Cable Assesmbly Type

12 Fiber PigtailFiber Specifications

Cable Type

(12) Singlemode 900µm Simplex 9/125µm Tight Buffered Bend Insensitive G657 A1

Fiber Category

Singlemode (OS1)

Insertion Loss Typical

0.12 dB

Reflectance, Typical #1

< -58 dBConnector Specifications Connector Type FC/UPC Polish UPC Housing Material Metal Housing Color Metal Boot Color Blue Ferrule Material Zirconia
