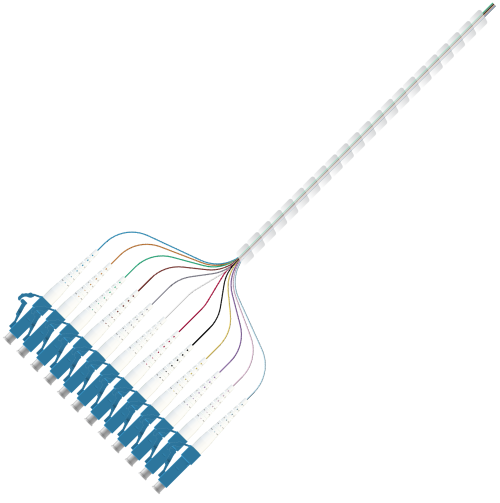

LC/UPC Fiber Optic Pigtail – Pigtail, 12 Fiber, LC/UPC, SM, 3meter Spiral Wrapped Pigtails (065-180-10-ML) – Multilink
LC/UPC, 12 Fiber Spiral Wrapped, Tight Buffered Fiber, Riser Rated, 900um Singlemode 9/125um, Bend Insensitive, 8″ Breakout
Download Spec Sheet
Call for Price
General Specifications
Nominal Outer Diameter
6.35mm
Cable Length
3 Meter
Cable Assesmbly Type
12 Fiber Pigtail
Flame Rating
Riser Rated OFNR
Fiber Count
12
Outer Jacket Color
Natural
Application
Riser RatedGeneral Building ApplicationsIndoor Horizontal
Fiber Specifications
Fiber Category
Singlemode (OS1)
Cable Type
(12) Singlemode 900µm Simplex 9/125µm Tight Buffered Bend Insensitive G657 A1
Reflectance, Typical #1
< -58 dB Insertion Loss Typical 0.12 dBConnector Specifications Connector Type LC/UPC Polish UPC Boot Color White Ferrule Material Zirconia Housing Material Composite Housing Color Blue
