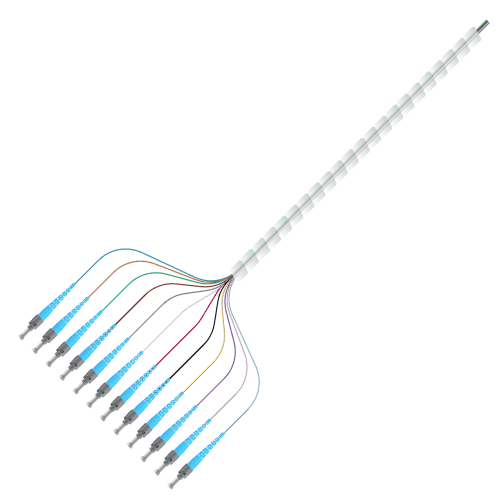

ST/UPC Fiber Optic Pigtail – Pigtail, 12 Fiber, ST/UPC, SM, 3meter Spiral Wrapped Pigtails (065-090-10-ML) – Multilink
ST/UPC, 12 Fiber Spiral Wrapped, Tight Buffered Fiber, Riser Rated, 900um Singlemode 9/125um, Bend Insensitive, 8″ Breakout
Call for Price
General Specifications
Flame Rating
Riser Rated OFNR
Fiber Count
12
Outer Jacket Color
Natural
Application
Riser RatedGeneral Building ApplicationsIndoor HorizontalNominal Outer Diameter
6.35mm
Cable Length
3 Meter
Cable Assesmbly Type
12 Fiber PigtailFiber Specifications
Cable Type
(12) Singlemode 900µm Simplex 9/125µm Tight Buffered Bend Insensitive G657 A1
Fiber Category
Singlemode (OS1)
Insertion Loss Typical
0.12 dB
Reflectance, Typical #1
< -58 dBConnector Specifications Connector Type ST/UPC Polish UPC Housing Material Metal Housing Color Metal Boot Color Blue Ferrule Material Zirconia
