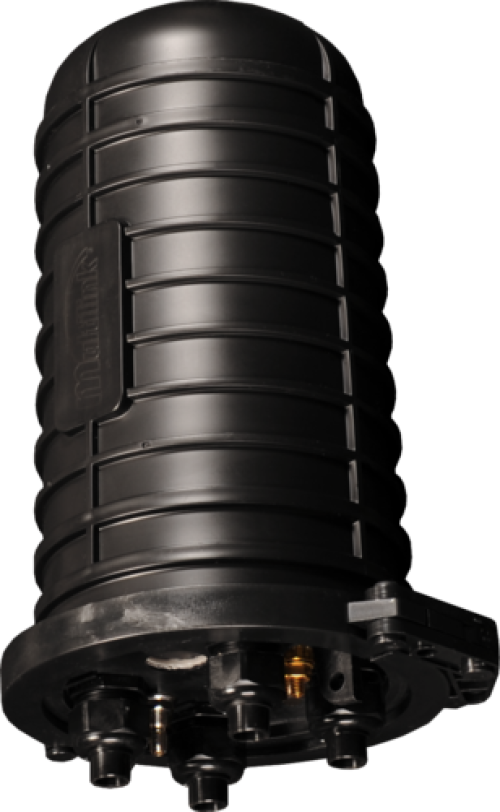

Starfighter 4024-D Dome Splice Enclosure Starfighter™ Dome Enclosure (020-059-10) – Multilink

$252.44

The Starfighter 4024-D Fiber Optic Dome is an “all parts” inclusive, hermetically-sealed splice enclosure designed for ease of assembly and re-entry in above and below grade applications. The enclosure features a gasketed split end plate for mid-span cable access applications and requires no special tools, adhesives or mastics for installation. All major hardware is factory installed to allow for quick field installation, while universal grommets and compression style lateral or branch cable seals make setup a breeze. The 4024-D is a small capacity enclosure that can be used in aerial, pedestal, underground, wall and strand applications.
Download Spec Sheet

(SKU: 103-191021001) – MicroFlow drive wheel A 2.0 mm incl – o-ring – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$354.90

(SKU: 103-191021002) – MicroFlow drive wheel B 2.5 mm incl – o-ring – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$354.90

(SKU: 103-191021003) – MicroFlow drive wheel C 3.0 mm incl – o-ring – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$354.90

(SKU: 103-191021004) – MicroFlow drive wheel D 6.0 mm incl – o-ring – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$354.90

(SKU: 103-171114001) – MicroFlow sensor arm set 1.5 mm – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$321.10

(SKU: 103-171114002) – MicroFlow sensor arm set 2.0 mm – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$321.10

Description
Brand

Description

General Specifications

Cable Entrance

(2) Express/Feeder/(4) Branch or Lateral

Exterior Dimensions

8.5″15.3″Express/Feeder Cable Diameter

.75″ (19mm).30″ (7.62mm)Branch/Lateral Cable Diameter

.63″ (16mm).27″ (6.9mm)

Physical Specifications

Weight

6.5 lbs (3kg)

Material

V-Band – PolycarbonateEnd Plates – PolypropyleneDome – Polypropylene

Splice Tray Specifications

Splice Tray

(4) 1120-SSTP

Splice Capacity

48 Single Fusion96 Dual Fusion

Safety Standard Specifications

Safety Standard

UL 1863Certifed to IEC60950 IP66Designed to GR-771

Brand

Multilink
