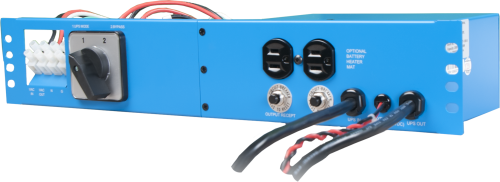

Manual bypass switch (panel transfer device) that is compatible with the EP2200-T. Allows for maintenance to be done on UPS and batteries without loss of power to the load.
| General Specifications | |
| Input Connection |
Terminal Block |
| Output Connection |
1″> 6 foot line cords ready for hard wiring to UPS terminal block Terminal Block |
| PTS Transfer Time |
1″> < 65 ms Buck & Boost mode < 10ms |
| Frequency |
60Hz ±3Hz |
| Input Specifications | |
| Step Load Response |
1/2 Cycle Full Recovery (Full resistive load) |
| Short Circuit Protection |
15A Circuit Breaker |
| Battery String Voltage |
48VDC (Four 12VDC Battery) |
| Voltage Range |
100~130VAC (120VAC Nominal) Prog. 90-150VAC |
| Current Capacity |
30A |
| Physical Specifications | |
| Width |
1″> 4.75″ 120.6mm |
| Height |
1″> 4.6″ 116.8mm |
| Depth |
1″> 6.5″ 165mm |
| Weight |
7 lbs |
| Output Specifications | |
| Load Crest Factor |
3:1 (Max) |
| Power VA/W |
2000VA/1500W |
| Output Voltage |
100~130 +/- 2VAC |
| Overload Capacity |
110% for 3 minutes |
| Output Waveform |
Sine Wave |
| Inverter Mode |
120VAC +/- 5% |
| Output Waveform THD |
< 3% (Resistive Load) |
| Power Factor |
0.75 |
| Mechanical Specifications | |
| Mounting |
Rack Mount EARS, 4 points optional 19″ rack mount |
| Environmental Specifications | |
| Storage Temperature Range |
-50°C to 75°C |
| Altitude (Note 2) |
10,000ft/3,000m |
| Cooling |
Convection (Approx. 7 with contractor coil dissipation) |
| Operating Temperature |
-34°C to +74°C |
| Operating Humidity Level |
0-95% Non Condensing |
| Safety Standard Specifications | |
| Surge Immunity |
IEC 1000-4-5 |
| EMI |
FCC Class A |
