PDF Download Installation Manual

MicroDucts are small diameter conduits ranging from 5-27mm OD that provide a pathway for fiber cables. They are a natural evolution of standard conduits as space in networks is a premium and as new technologies develop, they typically decrease in size. FuturePath is two or more MicroDucts bundled under an oversheath. Both products can be installed using standard Outside Plant (OSP) installation methods in common applications. Choose the correct product by application and installation method listed below.

Take a look at our new digital tools and discover what MicroTechnology can do for your next project[/vc_column_text][vc_row_inner equal_height=”yes”][vc_column_inner width=”1/2″][vc_column_text]

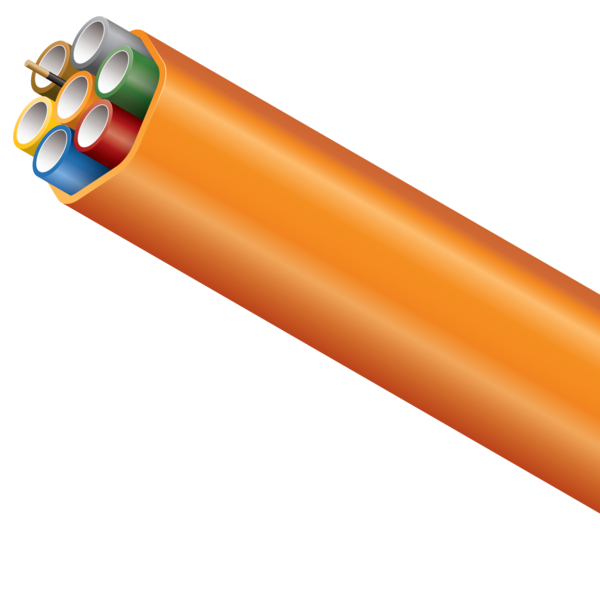

MicroDuct is bundled into an easy-to-handle unit known as FuturePath. FuturePath can be installed just like standard duct: open trench, aerial, directional drilled, plowed, or pulled into an existing conduit. When branching individual MicroDucts, there is no need for a special branching box. No special tools or equipment are required for installation.

FuturePath

  • No special tools required for installation, can be installed like a standard duct
  • Multiple pathways
  • Multiple configurations available
  • Internal Ribs, Silicore® ULF, Rip Cord, and Locate Wire



Shop FuturePath

[/vc_column_text]

[vc_separator color=”sandy_brown”][vc_column_text]

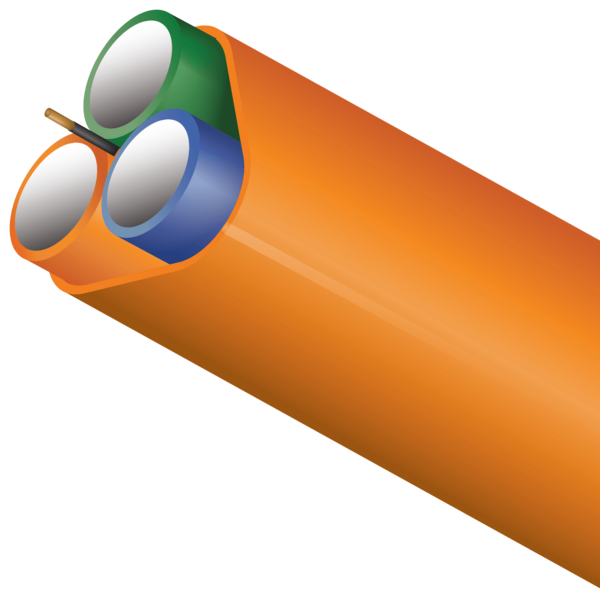

FuturePath configuration consisting of 2, 3, or 4 conduits, available in a selection of sizes and wall types. A perfect choice for customers who would like to plan for future possibilities using larger standard fiber cables

FuturePath Jumbo

  • Consists of 2, 3, or 4 conduits
  • Available in many sizes and wall types
  • Good for multiple types of large standard fiber cables
  • No special tools required for installation
  • Silicore® ULF, Rip Cord, Locate Wire



Shop FuturePath Jumbo

[/vc_column_text]

[vc_separator color=”sandy_brown”][vc_column_text]

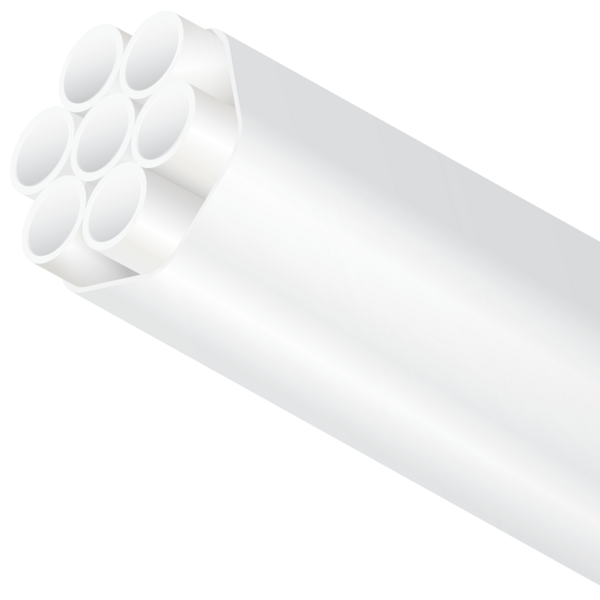

Dura-Line was the first to pioneer this technology and introduce it to the U.S. market. LSZH Conduit and MicroDucts, verified by the NRTL (Intertek) to ETL standards UL1685-4 and IEC 60754-1, exhibit excellent properties such as low-flame propagation, low-smoke generation, zero-halogen emissions, and excellent low-temperature mechanical properties. They are designed for use in applications where smoke, toxic fumes, and acidic gas pose a health risk and possible damage to electronic equipment. Examples include enclosed public areas and poorly ventilated areas such as tunnels, mass transit corridors, behind-the-wall, control rooms, and confined spaces.

FuturePath Low Smoke Zero Halogen

  • Low-flame propagation, low-smoke generation, zero-halogen emissions, safer in confined spaces
  • Available from 5mm to 12.7mm
  • Multiple pathways
  • No special tools required for installation
  • 24-way, 19-way, 12-way, 7-way, 4-way, 3-way or 2-way



Shop FuturePath LSZH

[/vc_column_text]

[vc_separator color=”sandy_brown”][vc_column_text]

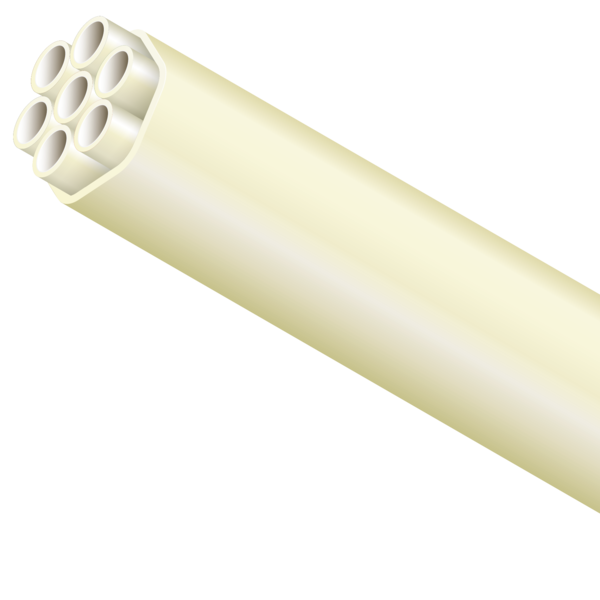

FuturePath Riser rated products are used within buildings in either vertical or horizontal backbone applications or directly to workstations as drops. FuturePath Riser is fully approved by the American ETL (Electrical Testing Laboratories) for Riser applications per UL-2024 and UL-94-V2

FuturePath Riser

  • For use in buildings
  • Available from 5mm to 12.7mm
  • Multiple pathways
  • No special tools required for installation
  • Configurations: 24-way, 19-way, 12-way, 7-way, 4-way, 3-way or 2-way
  • Internal Ribs, Silicore, Rip Cord



Shop FuturePath Riser

[/vc_column_text]

[vc_separator color=”sandy_brown”][vc_column_text]

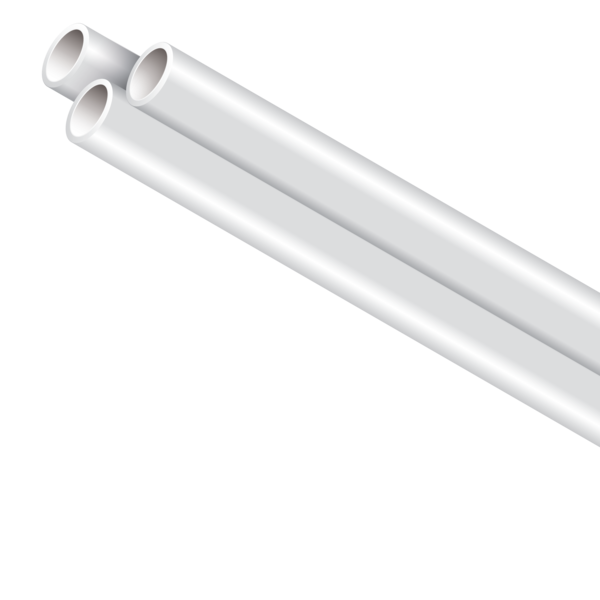

Dura-Line was the first to pioneer this technology and introduce it to the U.S. market. LSZH Conduit and MicroDucts, verified by the NRTL (Intertek) to ETL standards UL1685-4 and IEC 60754-1, exhibit excellent properties such as low-flame propagation, low-smoke generation, zero-halogen emissions, and excellent low-temperature mechanical properties. They are designed for use in applications where smoke, toxic fumes, and acidic gas pose a health risk and possible damage to electronic equipment. Examples include enclosed public areas and poorly ventilated areas such as tunnels, mass transit corridors, behind-the-wall, control rooms, and confined spaces.

Microducts LSZH

  • Low-flame propagation, low-smoke generation, zero-halogen emissions, and low-temperature mechanical properties
  • Safe for enclosed public areas and areas with low venting
  • Available from 5mm to 27mm



Shop MicroDucts LSZH

[/vc_column_text]

[vc_separator color=”sandy_brown”][vc_column_text]

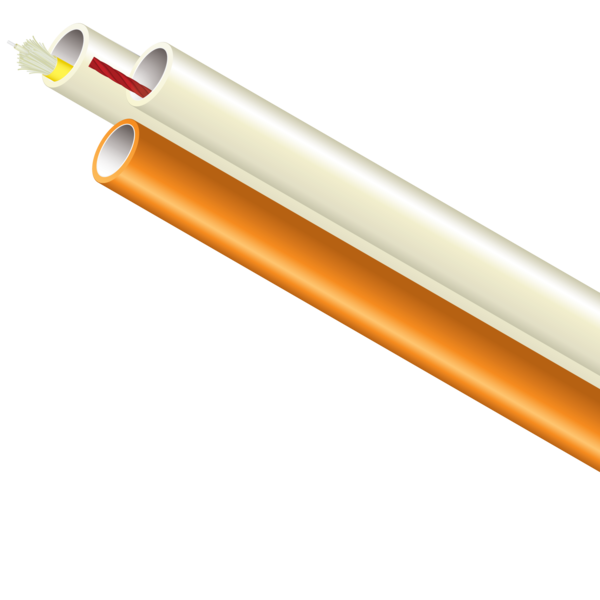

Great for MDU applications, our Riser MicroDucts are made from fire retardant materials which are fully approved by the American ETL (Electrical Testing Laboratories) for Riser applications per UL-2024 and UL-94-V2. Pre-installed pull string is available for quick fiber installations. A SILICORE® lining makes cable installation even easier without using wet lubes inside buildings.

Microducts Riser

  • Made from fire retardant materials
  • Comes empty or with either a single fiber cord or pull string pre-installed
  • Available from 5mm OD – 27mm OD
  • Internal Ribs, Silicore



Shop MicroDucts Riser

[/vc_column_text]

[vc_separator color=”sandy_brown”][vc_column_text]

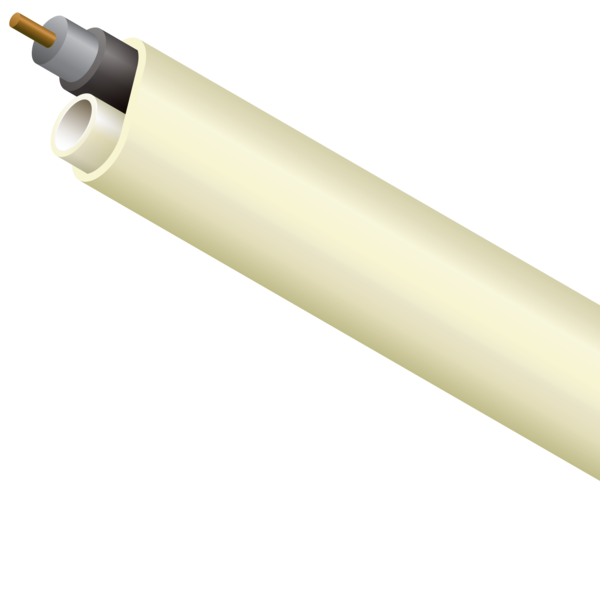

Coax for today and a fiber pathway for the future, all neatly behind the wall. MicroDuct is paired with RG6 Coaxial cable encased in an oversheath. Coax can be used for powering a low voltage alarm system or other low voltage signal needs (camera or door unlock capability)

MicroDucts PiggyBack

  • Used for powering low voltage systems
  • Paired with RG6 Coaxial cable encased in oversheath
  • 8.5/6 mm Microduct
  • Simple installation
  • Internal Ribs, Silicore ULF



Shop MicroDucts Piggyback

[/vc_column_text]

[vc_separator color=”sandy_brown”][vc_column_text]

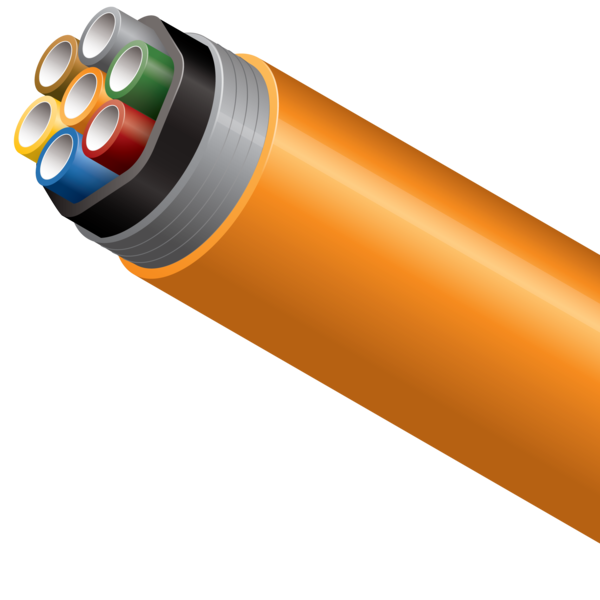

FuturePath Armored is designed to provide superior mechanical protection against rodents, ballistics, crush, chemicals, and moisture penetration in a direct bury or aerial application. The corrugated steel armor is coated with a corrosion-resistant copolymer and bonded with the HDPE jacket for superior protection in rugged environments.

FuturePath Armored

  • Armored protection against odents, ballistics, crush, chemicals, moisture penetration
  • Multiple pathways
  • No special tools required for installation
  • Configurations: 19-way, 7-way or 4-way
  • Internal Ribs, Silicore ULF, Rip Cord



Shop FuturePath Armored

[/vc_column_text]

[vc_separator color=”sandy_brown”][vc_column_text]

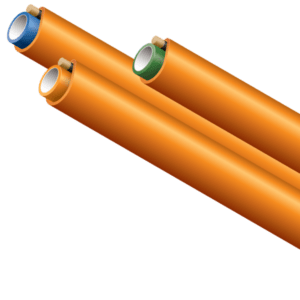

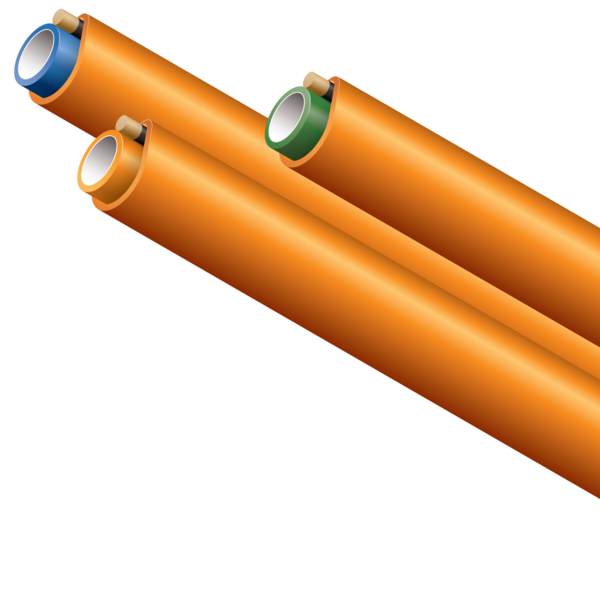

Perfect for Drops in FTTH applications, MicroDucts with a location wire for easy identification in the ground.

MicroDucts Locatable

  • Comes with location wire for easy identification in the ground
  • Locatable MicroDuct drop
  • Multiple sizes
  • Accommodates fiber drops from 1.2mm to 11mm and flat drop
  • Internal Ribs, Silicore ULF



Shop MicroDucts Locatable

[/vc_column_text]

[vc_separator color=”sandy_brown”][/vc_column_inner][vc_column_inner width=”1/2″][vc_column_text]

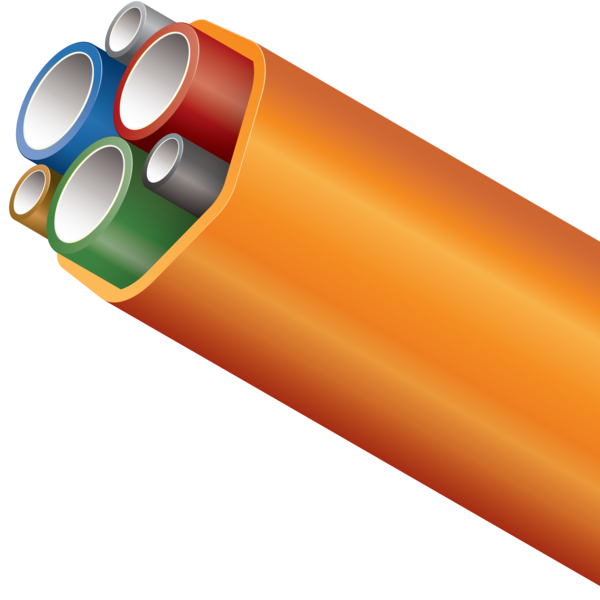

FuturePath configuration consisting of two or more different sizes of conduit and or MicroDucts. A perfect choice for customers who have needs to run micro cables and larger standard fiber cables at the same time, or would like to plan for future possibilities.

FuturePath Hybrid

  • Two or more different sizes of conduit or MicroDucts, good for both microcables and large standard cables
  • No special tools required for installation
  • Multiple pathways
  • Silicore® ULF, Rip Cord, Locate Wire



Shop FuturePath Hybrid

[/vc_column_text]

[vc_separator color=”sandy_brown”][vc_column_text]

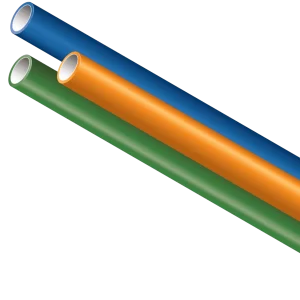

MicroDucts are a great way of getting the most versatility out of your current empty duct system. Why install one fiber cable when you could install multiple MicroDucts? Each MicroDuct is a pathway for fiber now or in the future. Expand your network as your needs require.

MicroDucts HDPE

  • Utilizes space in an occupied or empty duct system
  • Available from 5mm OD – 27mm OD
  • Co-extruded with SILICORE®ULF permanent lining to reduce friction on cable installs
  • Internal Ribs, Silicore® ULF



Shop Microducts HDPEHybrid

[/vc_column_text]

[vc_separator color=”sandy_brown”][vc_column_text]

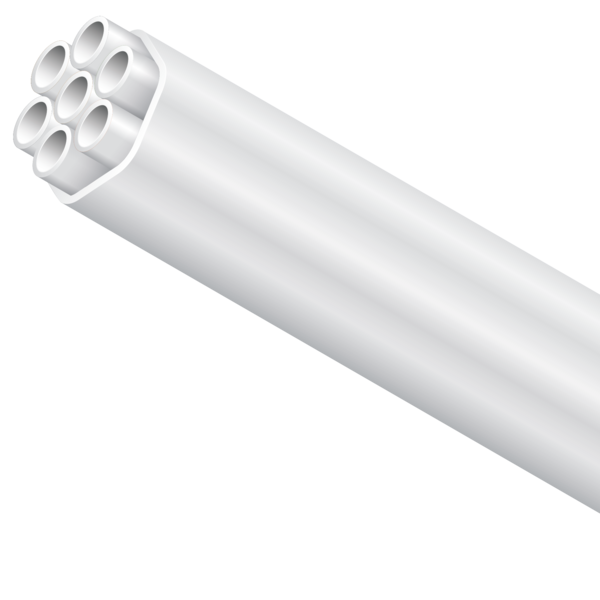

FuturePath Plenum with the super slick Silicore® permanent lining is used exclusively in plenum applications such as designated return air plenums and under floor return air spaces. ETL approved for Plenum applications per UL-2024 and UL-94-VO.

FuturePath Plenum

  • Used exclusively in Plenum applications
  • Available from 5mm to 12.7mm
  • Multiple pathways
  • No special tools required for installation
  • Configurations: 24-way, 19-way, 12-way, 7-way, 4-way, 3-way or 2-way
  • Internal Ribs, Silicore®, Rip Cord



Shop FuturePath Plenum

[/vc_column_text]

[vc_separator color=”sandy_brown”][vc_column_text]

Taking a fiber cable or fiber drop to a house or business has never been easier thanks to our MicroDuct Figure-8. This self-supported aerial configuration boasts a small profile and the industry standard support messenger makes the installation easy and fast. No special tools or hardware are required for installation.

MicroDucts Figure-8

  • Small and self-supported with high strength
  • Available in (OD/ID) from 12.7/10mm and 18/14mm
  • Internal Ribs, Silicore ULF



Shop MicroDucts Figure-8

[/vc_column_text]

[vc_separator color=”sandy_brown”][vc_column_text]

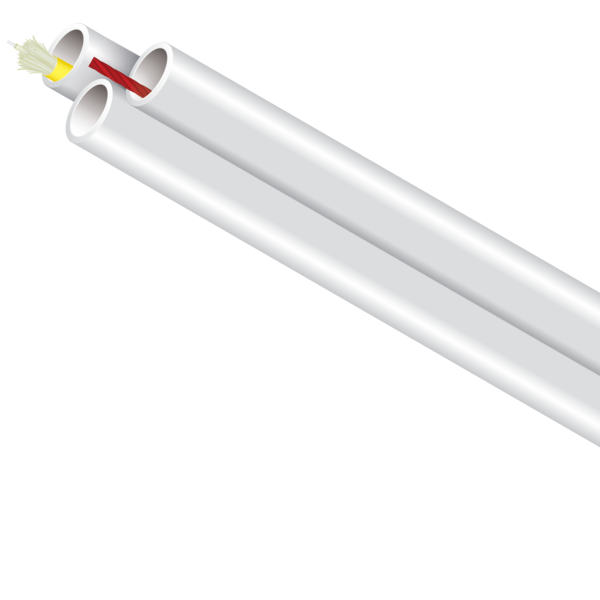

Dura-Line, the leader in MicroDuct technology has developed Plenum MicroDucts specifically for your MDU needs. Plenum MicroDucts are made from fire retardant materials which are fully ETL approved for Plenum applications per UL-2024 and UL-94-VO.

MicroDucts Plenum

  • Made of fire retardant materials
  • Available from 5mm OD – 27mm OD
  • Available empty,or with either a single fiber cord or pull string pre-installed
  • Internal Ribs, Silicore



Shop MicroDucts Plenum

[/vc_column_text]

[vc_separator color=”sandy_brown”][vc_column_text]

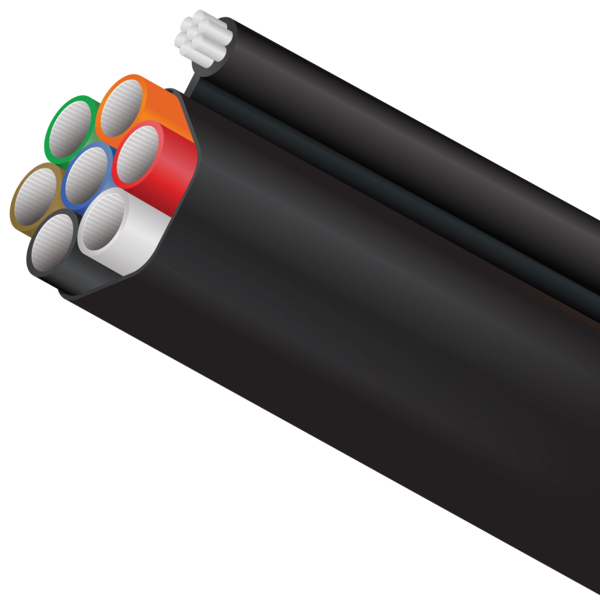

For a fast installation and the lowest deployment cost, nothing beats FuturePath Figure-8. Constructed with factory bundled MicroDucts and a polyethylene oversheath that incorporates a 1/4" Extra High Strength Galvanized Steel Strand.

FuturePath Figure-8

  • Bundled with polyethylene oversheath and MicroDucts, extra high strength
  • Multiple pathways
  • No special tools required for installation
  • Configurations: 7-way, 4-way, 2-way
  • Internal Ribs, Silicore ULF



Shop FuturePath Figure-8

[/vc_column_text]

[vc_separator color=”sandy_brown”][vc_column_text]

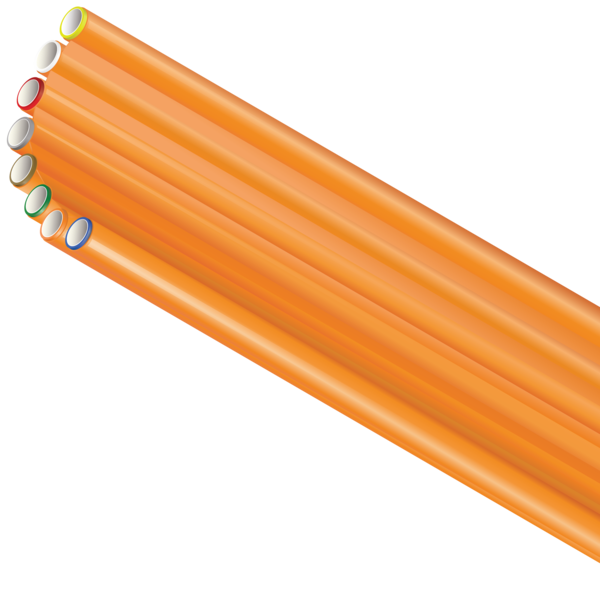

Leading the way in MicroDuct Technology, we developed FuturePath Flex to meet specific MDU and saw cut (MicroTrenching) installation requirements. FuturePath Flex's preconfigured bundles will save on installation time and add versatility and expansion opportunities to your network.

FuturePath Flex

  • Ideal for Micro-Trenching with reduced soil removal and impact to the right-of-way
  • Allows for easy separation and routing of individual ducts
  • No special tools required
  • Configurations: 8-way, 6-way, 4-way or 2-way
  • Internal Ribs, Silicore ULF



Shop FuturePath Flex

[/vc_column_text]

[vc_separator color=”sandy_brown”][vc_column_text]

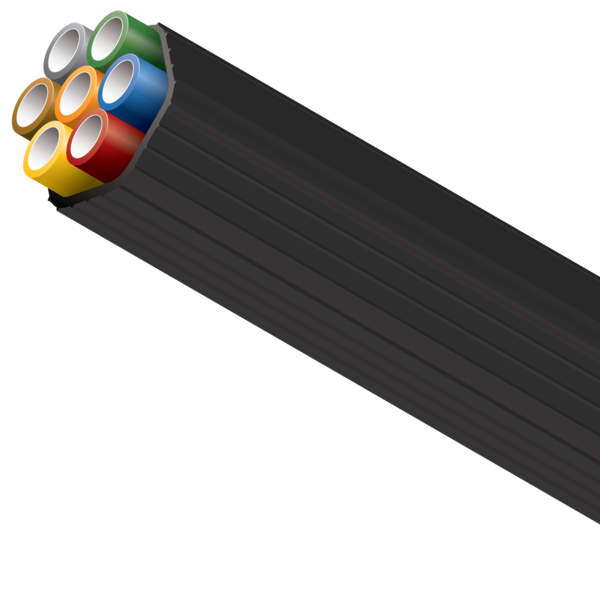

FuturePath Aerial is a bundled package of MicroDucts for easy installation in an aerial environment. FuturePath makes the best use of limited available space on the pole while reducing installation cost and time to deploy. No special installation hardware or tools are needed for deployment other than standard aerial installation equipment.FuturePath Aerial

  • Designed for aerial installation, maximizing pole space
  • No special hardware required for installation except for standard aerial installation equipment
  • Multiple pathways
  • Configurations: 7-way, 4-way, 3-way, 2-way
  • Internal Ribs, Silicore ULF, Rip Cord



Shop FuturePath Aerial

[/vc_column_text]

[vc_separator color=”sandy_brown”][/vc_column_inner][/vc_row_inner][/vc_column][vc_column width=”1/4″][vc_column_text]
