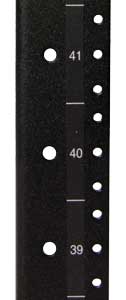

#10-32 Mounting Rails
|
| Part No. |
Description |
| 7205-ES1P |
Pair of EIA Mounting Rails for 72″H enclosures; 19″ or 23″ mounting
|
| 7805-ES1P |
Pair of EIA Mounting Rails for 78″H enclosures; 19″ mounting |
| 8405-ES1P |
Pair of EIA Mounting Rails for 84″H enclosures; 19″ or 23″ mounting
|
|
|
|
|
|
|
|
|
 |

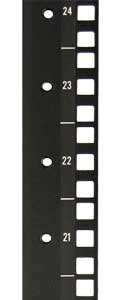

M6 Mounting Rails
|
| Part No. |
Description |
| 3005-E2P |
Pair of EIA Mounting Rails to accept M6 cage nuts for 30″H enclosures;
19″ mounting
|
| 4805-E2P |
Pair of EIA Mounting Rails to accept M6 cage nuts for 48″H enclosures;
19″ mounting |
| 6005-E2P |
Pair of EIA Mounting Rails to accept M6 cage nuts for 60″H enclosures;
19″ mounting |
| 7205-ES2P |
Pair of EIA Mounting Rails to accept M6 cage nuts for 72″H enclosures;
19″ or 23″ mounting |
| 7805-ES2P |
Pair of EIA Mounting Rails to accept M6 cage nuts for 78″H enclosures;
19″ mounting |
| 8405-ES2P |
Pair of EIA Mounting Rails to accept M6 cage nuts for 84″H enclosures;
19″ or 23″ mounting |
|
|
|
RMU Labels
|
| All enclosure mounting rails (whether in an enclosure or purchased seperately) are numbered with rack mount units (RMU) for easy installation of equipment. If you have a pair of rails that aren’t marked, RMU Labels make any rails as easy as a Great Lakes Rail. Each set of labels has a black powdercoat look and are easy to “peel and stick”. Find out more! |
| Part No. |
Description |
| GL-RMUTA |
Package of four (4), ascending 1-45 Rack Mount Unit (RMU) Labels; 1 on the bottom, 45 on the top |
| GL-RMUTD |
Package of four (4), descending 1-45 Rack Mount Unit (RMU) Labels; 1 on the top, 45 on the bottom |
|
|
|
|
|

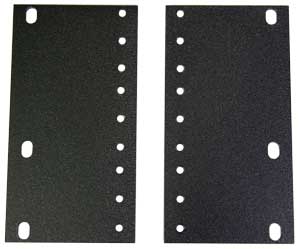

Reducer Brackets
|
| Part No. |
Description |
| 2319 |
Pair of recessed Reducer Brackets, 23″ to 19″ (8.625″H)
|
| 2319-F |
Pair of Flush Reducer Brackets, 23″ to 19″ (5.25″H) |
| 2319F1.75 |
Pair of Flush Reducer Brackets, 23″ to 19″ (1.75″H) |
| All Reducer Brackets are tapped #10-32 |
 |

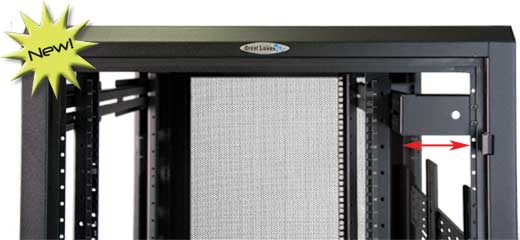

Offset Rail Kit
Great Lakes offset rail kit allows one set of rails (on either side of the enclosure) in 30″W ES enclosures to be shifted inward, creating 6″ of space (from the outside of the rail to the inside edge of the enclosure). This 6″ of space is ideal for routing high density cable bundles along one side of an enclosure, either independently or using vertical cable troughs or lacing bars. |
| Part No. |
Description |
| OSRK |
Offset Rail Kit for 78″ and 84″H ES Enclosures |
Do I choose M6 or #10-32? Watch it on  |
| Find out about the strength of Great Lakes’ Rails on |
|
|
